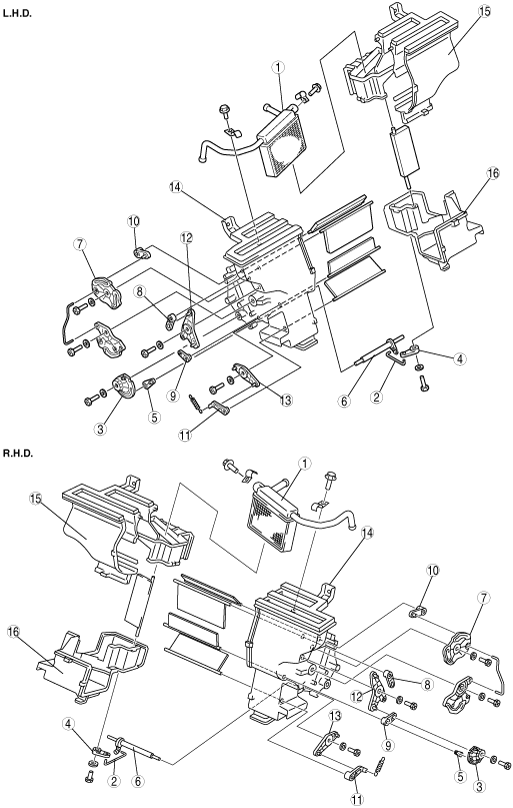

HEATER UNIT DISASSEMBLY/ASSEMBLY
id071100805200
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
absggw00001149
|
|
1
|
Heater core
|
|
2
|
Air mix rod
|
|
3
|
Air mix link
|
|
4
|
Air mix crank (1)
|
|
5
|
Air mix crank (2)
|
|
6
|
Air mix shaft
|
|
7
|
Airflow mode main link
|
|
8
|
Airflow mode crank (1)
|
|
9
|
Airflow mode crank (2)
|
|
10
|
Airflow mode crank (3)
|
|
11
|
Airflow mode crank (4)
|
|
12
|
Airflow mode sub link (1)
|
|
13
|
Airflow mode sub link (2)
|
|
14
|
Heater case (1)
|
|
15
|
Heater case (2)
|
|
16
|
Heater case (3)
|
