COOLING UNIT DISASSEMBLY/ASSEMBLY

id071100805300

Caution

•  If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign material out of the cycle.

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

abs0zw00000192

1	Polyurethane protector
2	Cooler case (1)
3	Cooler case (2)
4	Thermistor (With heater) (See Thermistor Assembly Note.)
5	Thermistor (Without heater) (See Thermistor Assembly Note.)
6	Evaporator
7	Expansion valve
8	Evaporator pipe

Thermistor Assembly Note

1.  Assemble the thermistor as shown in the figure.

abs0zw00000193

Evaporator size: 81 mm {3.2 in}

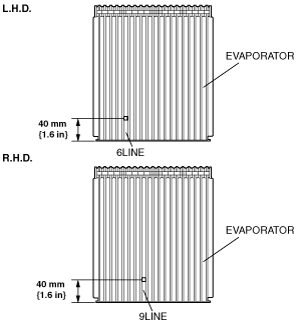

absggw00001152

Evaporator size: 60 mm {2.4 in}

absggw00002023
