AIR OUTLET DUCT DISASSEMBLY/ASSEMBLY
id071100807200

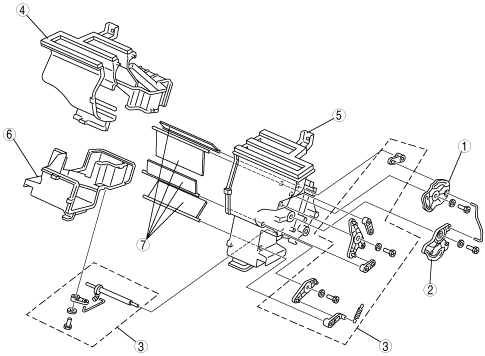

1. Disassemble in the order indicated in the table.
dbg740zwb033
|
|
1
|
Airflow mode main link
|
|
2
|
Airflow mode link
|
|
3
|
Airflow mode link set
|
|
4
|
Case (1)
|
|
5
|
Case (2)
|
|
6
|
Case (3)
|
|
7
|
Airflow mode door
|
2. Assemble in the reverse order of disassembly.
