FAN SWITCH INSPECTION

id074000801300

1.  Remove the climate control unit. (See CLIMATE CONTROL UNIT REMOVAL.) (See CLIMATE CONTROL UNIT INSTALLATION.)

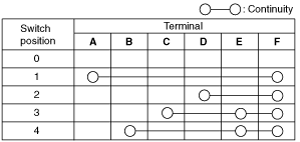

2.  Verify that the continuity between the fan switch terminals is as indicated in the table.

•  If there is any malfunction, replace the fan switch.

dbg740zwb025

dbg740zwb026
