REAR DOOR REMOVAL/INSTALLATION

id091100800300

1.  Disconnect the negative battery cable.

2.  Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

3.  Remove the door screen. (See REAR DOOR UNIT REMOVAL/INSTALLATION.)

4.  Remove the rear speaker. (See REAR SPEAKER REMOVAL/INSTALLATION.)

5.  Remove in the order indicated in the table.

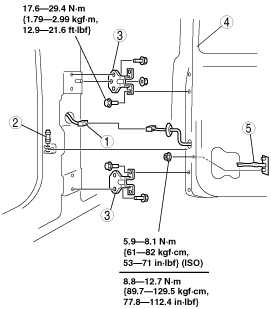

absggw00002366

1	Connector
2	Checker pin
3	Rear door hinge
4	Rear door
5	Checker

6.  Install in the reverse order of removal.

7.  Adjust the rear door. (See DOOR ADJUSTMENT.)
