FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION

id091200800200

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(2)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(3)  Door screen

(4)  Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

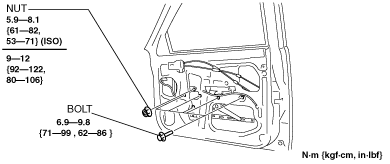

3.  Remove the nuts and bolts.

absggw00002378

4.  Remove the front power window regulator through the service hole.

abs0zw00000223

5.  Install in the reverse order of removal.
