POWER OUTER MIRROR INSPECTION

id091200803000

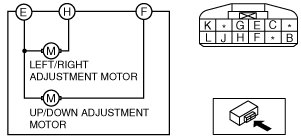

1.  Apply battery positive voltage to the power outer mirror terminals and inspect the operation of the power outer mirror.

abs0zw00000159

•  If not as specified, replace the power outer mirror.

Mirror operation	terminal
	B+	GND
Up	F	E
Down	E	F
Left	H	E
RIGHT	E	H

2.  Inspect for continuity between the power outer mirror heater terminals.

abs0zw00000160

•  If not as specified, replace the power outside mirror.

abs0zw00000161
