FRONT DOOR LATCH AND LOCK ACTUATOR INSPECTION

id091400800600

1.  The following actuators and switches are integrated with the front door latch and lock actuator. Inspect the front door latch and lock actuator according to each inspection procedure for the following items.

•  Front door lock actuator
•  Front door key cylinder switch
•  Door lock-link switch

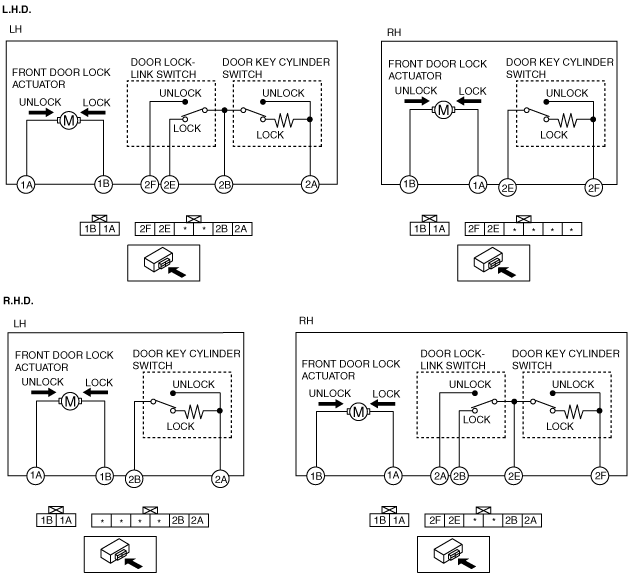

arnffw00000878


Front Door Lock Actuator Inspection

1.  Disconnect the front door lock actuator connector.

2.  Apply battery positive voltage to the front door lock actuator terminals and inspect the operation of the front door lock actuator.

arnffw00000051

•  If not as specified, replace the front door lock actuator.

Actuator operation

Connection

B+

GND
Lock
1A
(1B)
1B
(1A)
Unlock
1B
(1A)
1A
(1B)

( )  :LH


Front Door Key Cylinder Switch Inspection

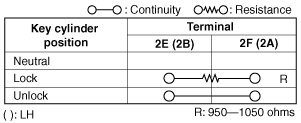

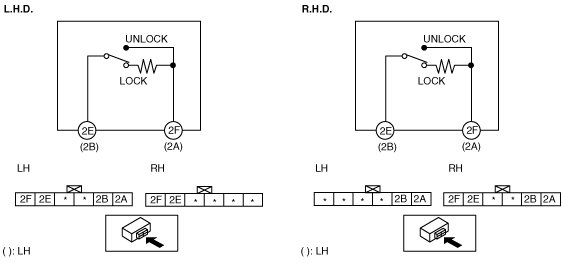

Inspect for continuity between the front door key cylinder switch terminals.
arnffw00000879
•  If not as specified, replace the front door latch and lock actuator.
absggw00001752

Door Lock-link Switch Inspection

1.  Disconnect the front door lock actuator connector.

2.  Inspect for continuity between the door lock-link switch terminals.

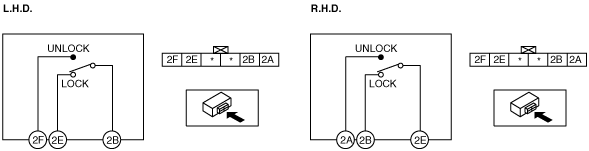

arnffw00000880

•  If not as specified, replace the front door lock actuator.

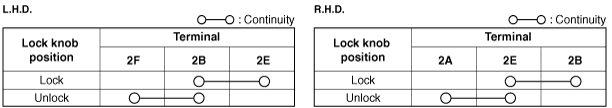

arnffw00000881
