RADIATOR GRILLE REMOVAL/INSTALLATION

id091600800900

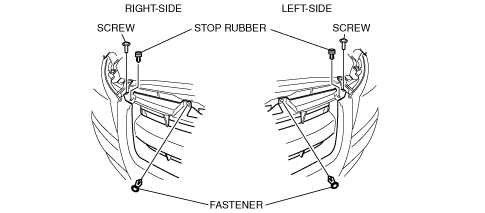

1.  Remove the screws, stop rubbers and fastener. (See Stop Rubber Removal Note.)

abs0zw00000382

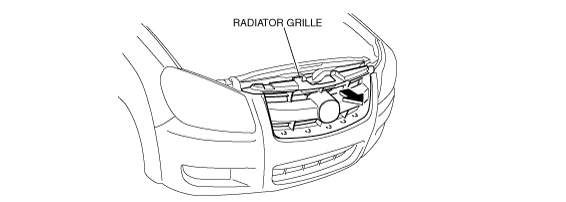

2.  Pull the top of radiator grille indicated in the arrow shown in the figure.

abs0zw00000383

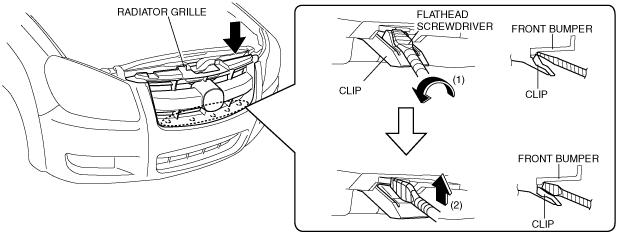

3.  Flathead screwdriver is inserted from the position of the arrow shown in figure.

abs0zw00000384

4.  Move the flathead screwdriver indicated in the arrow (1), (2) shown in the figure and then remove the clips.

5.  Remove the radiator grille.

6.  Install in the reverse order of removal.

Stop Rubber Removal Note

1.  Remove stop rubber by inserting a small flathead screwdriver into the service hole as shown in the figure.

absggw00002268
