CONSOLE REMOVAL/INSTALLATION [5R55S]

id0917008012j8

1.  Disconnect the negative battery cable.

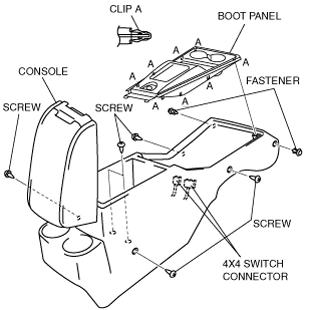

2.  Pull the boot panel upward and detach clips A.

3.  Disconnect the 4X4 switch connector. (4X4 only)

absggw00002272

4.  Remove the boot panel.

5.  Remove the screws and fasteners.

6.  Remove the console.

7.  Install in the reverse order of removal.
