CENTER PANEL REMOVAL/INSTALLATION

id091700804500

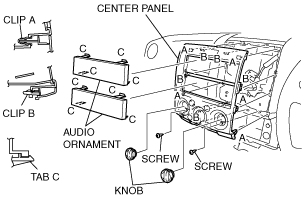

1.  Remove the knob.

absggw00002273

2.  Remove the screws.

3.  Pull the center panel outward and detach clips A and B.

4.  Remove the center panel.

5.  Remove the audio ornament. (vehicles without audio )

6.  Install in the reverse order of removal.
