CENTER PANEL UNIT CONSTRUCTION
id092000101500

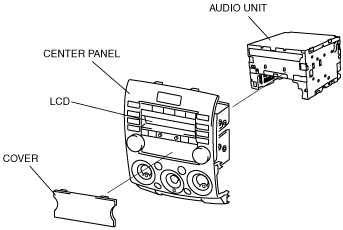

Structural View
abs0zn00000005
|

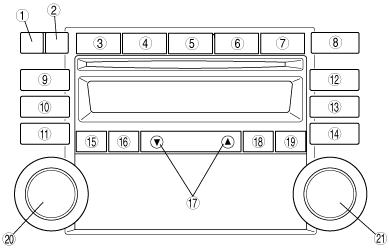

Button and switch Location
absggn00000358
|
|
No. |
With RDS (radio data system) |
Without RDS (radio data system) |
|---|---|---|
|
1
|
CLOCK button
|
|
|
2
|
LOAD button
|
|
|
3
|
FM 1 button
|
|
|
4
|
FM 2 button
|
|
|
5
|
AM button
|
|
|
6
|
CD button
|
|
|
7
|
MEDIA button
|
|
|
8
|
EJECT button
|
|
|
9
|
Preset button 1
|
|
|
10
|
Preset button 2
|
|
|
11
|
Preset button 3
|
|
|
12
|
Preset button 4
|
|
|
13
|
Preset button 5
|
|
|
14
|
Preset button 6
|
|
|
15
|
DISP/AUTO-M button
|
|
|
16
|
PTY button
|
—
|
|
17
|
SEEK/APC/TRACK switch (up or down)
|
|
|
18
|
TA button
|
—
|
|
19
|
AF button
|
SCAN/TRAFFIC INFORMATION button
|
|
20
|
POWER/VOLUME button
|
AUDIO CONT/TUNE/TEXT button
|
|
21
|
AUDIO CONT/TUNE/TEXT button
|
POWER/VOLUME button
|
