AUDIO UNIT CONSTRUCTION
id092000108900

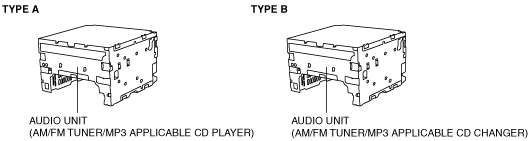

Structural view
Structural view
abs0zn00000003
|
Terminal Layout and Signal
Audio unit
|
Terminal |
Signal |
|
|---|---|---|
 |
1A
|
Front speaker LH (+)
|
|
1B
|
B+ (Power back up)
|
|
|
1C
|
Front speaker LH (–)
|
|
|
1D
|
Front speaker RH (–)
|
|
|
1E
|
TNS (+)
|
|
|
1F
|
Front speaker RH (+)
|
|
|
1G
|
Illumination (–)
|
|
|
1H
|
—
|
|
|
1I
|
Vehicle speed signal
|
|
|
1J
|
—
|
|
|
1K
|
—
|
|
|
1L
|
—
|
|
|
1M
|
—
|
|
|
1N
|
—
|
|
|
1O
|
—
|
|
|
1P
|
—
|
|
|
1Q
|
—
|
|
|
1R
|
ACC
|
|
|
1S
|
Rear speaker LH (+)
|
|
|
1T
|
—
|
|
|
1U
|
Rear speaker LH (–)
|
|
|
1V
|
Rear speaker RH (+)
|
|
|
1W
|
Power ground
|
|
|
1X
|
Rear speaker RH (–)
|
|
|
Terminal |
Signal |
|
|---|---|---|
 |
2A
|
Power ground
|
|
2B
|
—
|
|
|
2C
|
Input signal RH (+)
|
|
|
2D
|
—
|
|
|
2E
|
Input signal LH (+)
|
|
|
2F
|
—
|
|
|
2G
|
Signal ground
|
|
|
2H
|
—
|
|
|
2I
|
—
|
|
|
2J
|
—
|
|
|
2K
|
—
|
|
|
2L
|
—
|
|
|
2M
|
AUX control
|
|
|
2N
|
—
|
|
|
2O
|
—
|
|
|
2P
|
—
|
|
