CENTER PANEL UNIT DISASSEMBLY/ASSEMBLY

id092000800700

Caution

•  Before disassembling the center panel unit, spread a cloth on the floor to put the disassembled parts on. This protects the surface of the panel from scratches or dirt.

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

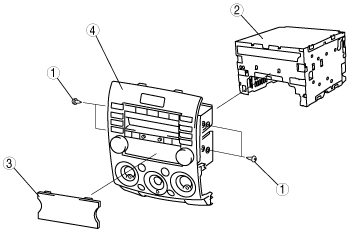

abs0zw00000098

1	Screw
2	Audio unit
3	Cover
4	Center panel
