AUXILIARY JACK REMOVAL/INSTALLATION

id092000809900

1.  Disconnect the negative battery cable.

2.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

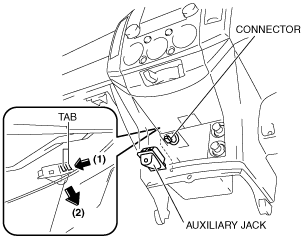

3.  Remove the auxiliary jack in the direction of the arrow (2) shown in the figure while pressing the auxiliary jack tabs in the direction of the arrow (1).

abs0zw00000116

4.  Disconnect the connector.

5.  Remove the auxiliary jack.

6.  Install in the reverse order of removal.
