INSTRUMENT CLUSTER STRUCTURAL VIEW
id092200101200
MT

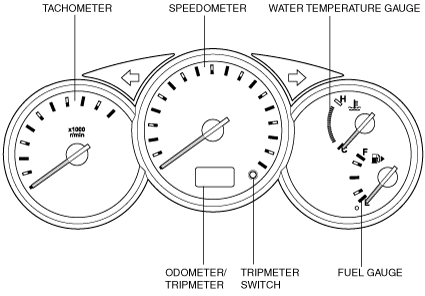

Meter And Gauge
abs0zn00000012
|

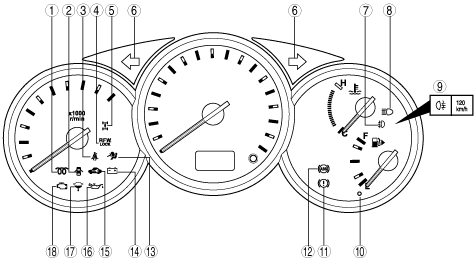

Warning And Indicator Light
abs0zn00000013
|
|
No. |
Warning and indicator light |
Input signal source |
Description |
Note |
|---|---|---|---|---|
|
1
|
Glow indicator light
|
PCM
|
Illuminates when the glow system is operating.
|
WLT-1, WLT-2, WL-C, WE-C
|
|
2
|
Door ajar warning light
|
Door switches
|
Illuminates when door is open.
|
—
|
|
3
|
Seat belt warning light
|
Buckle switch (Driver-side)
|
When the driver’s seat belt is not fastened, the seat belt warning light illuminates.
|
—
|
|
4
|
RFW indicator light
|
• RFW control module (G6, WLT-1, WLT-2)
• PCM (WL-C, WE-C)
|
When the RFW unit locked, the RFW indicator light illuminates.
|
4x4
|
|
5
|
4x4 indicator light
|
• RFW control module (G6, WLT-1, WLT-2)
• PCM (WL-C, WE-C)
|
When the 4H or 4L selected, the 4x4 indicator light illuminates.
|
4x4
|
|
6
|
Turn indicator light
|
Flasher control module
|
• Flashes when ignition switch is ON position during turn switch operation.
• Flashes when hazard switch is on.
|
—
|
|
7
|
Front fog indicator light
|
Front fog light relay
|
When the front fog light illuminates, the front fog indicator light illuminates.
|
With front fog light
|
|
8
|
High-beam indicator light
|
Headlight (HI)
|
When the headlight (high-beam) illuminates, the high-beam indicator light illuminates.
|
—
|
|
9
|
Rear fog indicator light
|
Rear fog light relay
|
When the rear fog light illuminates, the rear fog light indicator light illuminates.
|
With rear fog light
|
|
Vehicle speed warning light
|
ABS wheel-speed sensor
|
The micro computer in the instrument cluster determines the vehicle speed based on the vehicle speed signals from the ABS wheel-speed sensor and illuminates the vehicle speed warning light when the vehicle speed exceeds 120 km/h.
|
—
|
|
|
10
|
Fuel-level warning light
|
Fuel gauge sender unit
|
When the remaining fuel amount in the fuel tank is low, the fuel-level warning light illuminates.
|
—
|
|
11
|
Brake system warning light
|
• Parking brake switch
• Brake fluid level sensor
|
• When the parking brake is operating, the brake system warning light illuminates.
• When the brake fluid-level is low, the brake system warning light illuminates.
|
—
|
|
12
|
ABS warning light
|
ABS HU/CM
|
If the ABS system is malfunctioning, the ABS warning light remains illuminated.
|
With ABS
|
|
13
|
Air bag system warning light
|
SAS control module
|
Illuminates or flashes when SRS air bag system has malfunction.
|
With air bag system
|
|
14
|
Generator warning light
|
Generator
|
Illuminates if the generator output is not normal.
|
—
|
|
15
|
Security light
|
• Immobilizer unit
• Theft deterrent control module
|
Illuminates or flashes when immobilizer system has malfunction.
|
—
|
|
16
|
Oil pressure warning light
|
Oil pressure switch
|
Illuminates if the oil pressure is low.
|
—
|
|
17
|
Sedimentor warning light
|
Sediment switch
|
Illuminates when moisture or sedimentation in the fuel filter reaches a certain level or more.
|
WLT-1, WLT-2, WL-C, WE-C
|
|
18
|
MIL
|
PCM
|
Illuminates if a malfunction occurs in the engine control system and the automatic transaxle control system.
|
—
|
AT
Meter And Gauge
abs0zn00000012
|

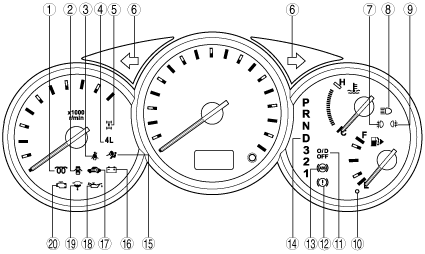

Warning And Indicator Light
abs0zn00000014
|
|
No. |
Warning and indicator light |
Input signal source |
Description |
Note |
|---|---|---|---|---|
|
1
|
Glow indicator light
|
PCM
|
Illuminates when the glow system is operating.
|
WLT-1, WLT-2, WL-C, WE-C
|
|
2
|
Door ajar warning light
|
Door switches
|
Illuminates when door is open.
|
—
|
|
3
|
Seat belt warning light
|
Buckle switch
|
When the driver’s seat belt is not fastened, the seat belt warning light illuminates.
|
—
|
|
4
|
4L indicator light
|
4x4 CM
|
When the 4L selected, the 4L indicator light illuminates.
|
4x4
|
|
5
|
4x4 indicator light
|
4x4 CM
|
When the 4H or 4L selected, the 4x4 indicator light illuminates.
|
4x4
|
|
6
|
Turn indicator light
|
Flasher control module
|
• Flashes when ignition switch is ON position during turn switch operation.
• Flashes when hazard switch is on.
|
—
|
|
7
|
Front fog indicator light
|
Front fog light relay
|
When the rear fog light illuminates, the rear fog light indicator light illuminates.
|
With front fog light
|
|
8
|
High-beam indicator light
|
Headlight (HI)
|
When the headlight (high-beam) illuminates, the high-beam indicator light illuminates.
|
—
|
|
9
|
Rear fog indicator light
|
Rear fog light relay
|
When the rear fog light illuminates, the rear fog light indicator light illuminates.
|
With rear fog light
|
|
10
|
Fuel-level warning light
|
Fuel gauge sender unit
|
When the remaining fuel amount in the fuel tank is low, the fuel-level warning light illuminates.
|
—
|
|
11
|
O/D OFF indicator light
|
TCM
|
• Illuminates in conjunction with the O/D OFF switch.
• Illuminates to alert the driver of a malfunction in the transmission.
|
—
|
|
12
|
Brake system warning light
|
• Parking brake switch
• Brake fluid level sensor
|
• When the parking brake is operating, the brake system warning light illuminates.
• When the brake fluid-level is low, the brake system warning light illuminates.
|
—
|
|
13
|
ABS warning light
|
ABS HU/CM
|
If the ABS system is malfunctioning, the ABS warning light remains illuminated.
|
With ABS
|
|
14
|
Selector indicator light
|
TCM
|
Illuminates the selector lever position.
|
—
|
|
15
|
Air bag system warning light
|
SAS control module
|
Illuminates or flashes when SRS air bag system has malfunction.
|
With air bag system
|
|
16
|
Generator warning light
|
Generator
|
Illuminates if the generator output is not normal.
|
—
|
|
17
|
Security light
|
• Immobilizer unit
• Theft deterrent control module
|
Illuminates or flashes when immobilizer system has malfunction.
|
—
|
|
18
|
Oil pressure warning light
|
Oil pressure switch
|
Illuminates if the oil pressure is low.
|
—
|
|
19
|
Sedimentor warning light
|
Sediment switch
|
Illuminates when moisture or sedimentation in the fuel filter reaches a certain level or more.
|
WLT-1, WLT-2, WL-C, WE-C
|
|
20
|
MIL
|
PCM
|
Illuminates if a malfunction occurs in the engine control system and the automatic transaxle control system.
|
—
|
