FRAME DIMENSIONS (UNDERBODY REGULAR CAB 2WD)

id098000604900

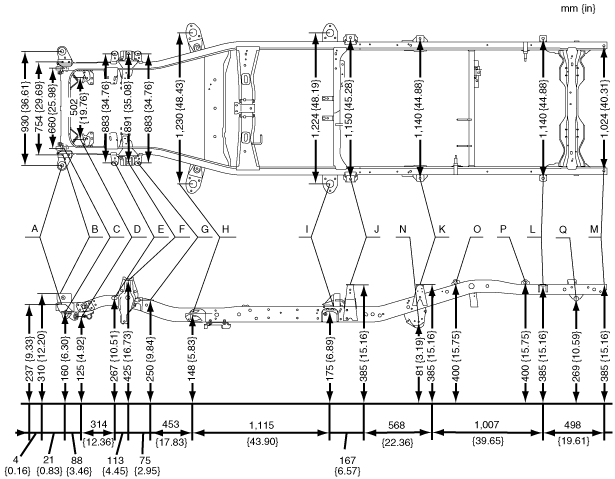

Flat-plane dimensions

dbg0980b001

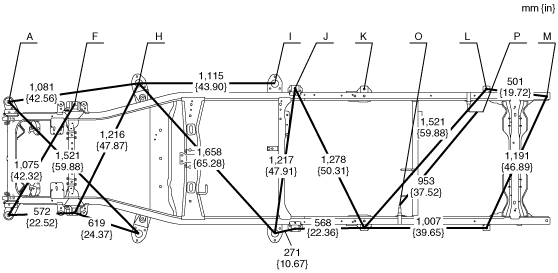

Straight-line dimensions

dbg0980b002

Point symbol	Designation	Hole diameter or bolt or nut size mm {in}
A	Cabin mounting bracket No.1	ø27 {1.06}
B	Bumper stay bracket	ø15 {0.59}
C	Tie down hook mounting hole	ø13.5 {0.53}
D	Front suspension bracket tension rod	ø25 {0.98}
E	Rebound stopper bracket	ø12.5 {0.49}
F	Front suspension bracket	ø16 {0.63}
G	Rebound stopper bracket	ø12.5 {0.49}
H	Cabin mounting bracket No.2	ø60 {2.36}
I	Cabin mounting bracket No.3	ø65 {2.56}
J	Box bracket No.1	ø20 {0.79}
K	Box bracket No.2	ø16 {0.63}
K’	Box bracket No.2	ø20 {0.79}
L	Box bracket No.3	ø16 x 23
		{0.63 x 0.91}
L’	Box bracket No.3	ø20 {0.79}
M	Box mounting hole	ø20 {0.79}
N	Front spring hanger	ø14 {0.55}
O	Dumper bracket	M12 {0.47}
P	Dumper bracket	M12 {0.47}
Q	Rear spring hanger	ø32 {1.26}
