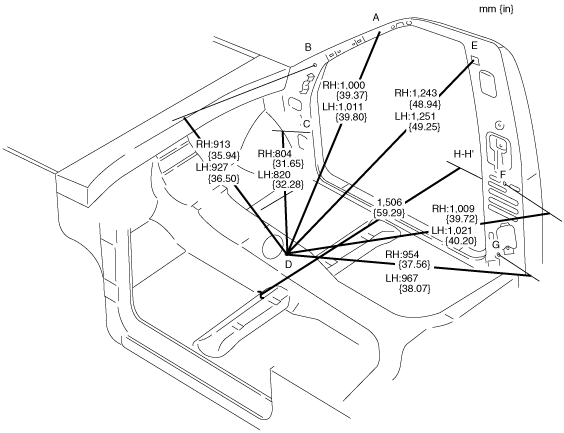

ROOM STRAIGHT-LINE DIMENSIONS (REGULAR CAB) [DIMENSIONS]

id098010608600

dbg0980b022

dbg0980b023

Point symbol

Designation

Hole diameter or bolt or nut size mm {in}

A

Harness installation hole

ø7 {0.28}

B

Front pillar inner datum hole

ø10 {0.39}

C

Cowl side panel datum hole

ø12 {0.47}

D

Tunnel reinforcement installation hole

ø7 {0.28}

E

Rear pillar inner datum hole

ø12 {0.47}

F

Rear pillar inner datum hole

ø12 {0.47}

G

Rear pillar inner datum slot

ø8 x 12

{0.31 x 0.47}

H

Striker installation slot

ø8.2 x 7.6

{0.32 x 0.30}

Point symbol	Designation	Hole diameter or bolt or nut size mm {in}
A	Harness installation hole	ø7 {0.28}
B	Front pillar inner datum hole	ø10 {0.39}
C	Cowl side panel datum hole	ø12 {0.47}
D	Tunnel reinforcement installation hole	ø7 {0.28}
E	Rear pillar inner datum hole	ø12 {0.47}
F	Rear pillar inner datum hole	ø12 {0.47}
G	Rear pillar inner datum slot	ø8 x 12
G	Rear pillar inner datum slot	{0.31 x 0.47}
H	Striker installation slot	ø8.2 x 7.6
H	Striker installation slot	{0.32 x 0.30}
