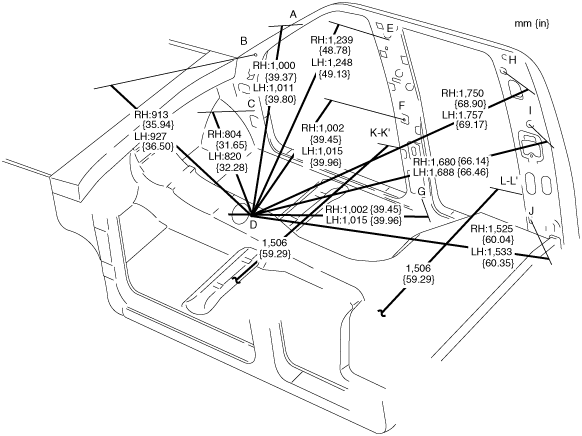

ROOM STRAIGHT-LINE DIMENSIONS (DOUBLE CAB) [DIMENSIONS]

id098010608700

dbg0980b024

dbg0980b025

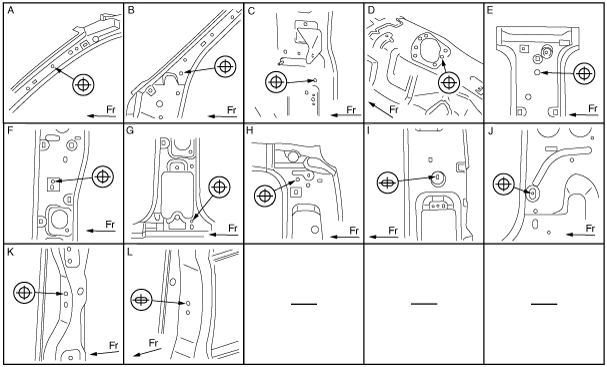

Point symbol	Designation	Hole diameter or bolt or nut size mm {in}
A	Harness installation hole	ø7 {0.28}
B	Front pillar inner datum hole	ø10 {0.39}
C	Cowl side panel datum hole	ø12 {0.47}
D	Tunnel reinforcement installation hole	ø7 {0.28}
E	Center pillar inner datum hole	ø7 {0.28}
F	Center pillar inner datum hole	ø7 {0.28}
G	Center pillar inner datum hole	ø7 {0.28}
H	Rear pillar inner datum hole	ø12 {0.47}
I	Rear pillar inner datum slot	ø7 x 9
		{0.28 x 0.35}
J	Rear pillar inner datum hole	ø6 {0.24}
K	Striker installation hole	ø10.2 {0.40}
L	Striker installation slot	ø8.2 x 7.6
		{0.32 x 0.30}
