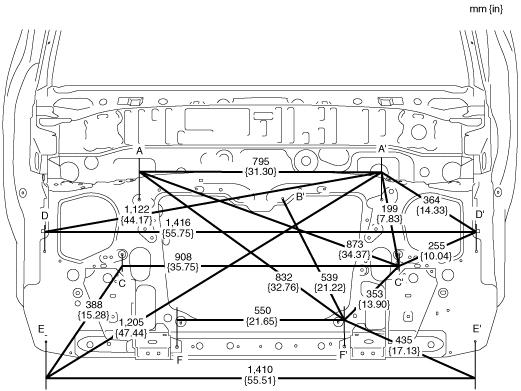

FRONT BODY STRAIGHT-LINE DIMENSIONS (1) [DIMENSIONS]

id098010740600

dbg0980b011

dbg0980b012

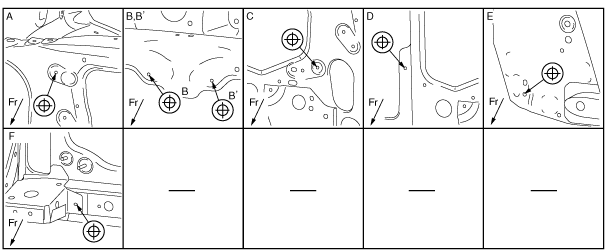

Point symbol

Designation

Hole diameter or bolt or nut size mm {in}

A

Shroud panel datum hole

ø7 {0.28}

B

Shroud panel datum hole

ø7 {0.28}

C

Shroud panel datum hole

ø7 {0.28}

D

Shroud panel datum hole

ø7 {0.28}

E

Shroud panel datum hole

ø6.2 {0.24}

F

Crossmember datum hole

ø10 {0.39}

Point symbol	Designation	Hole diameter or bolt or nut size mm {in}
A	Shroud panel datum hole	ø7 {0.28}
B	Shroud panel datum hole	ø7 {0.28}
C	Shroud panel datum hole	ø7 {0.28}
D	Shroud panel datum hole	ø7 {0.28}
E	Shroud panel datum hole	ø6.2 {0.24}
F	Crossmember datum hole	ø10 {0.39}
