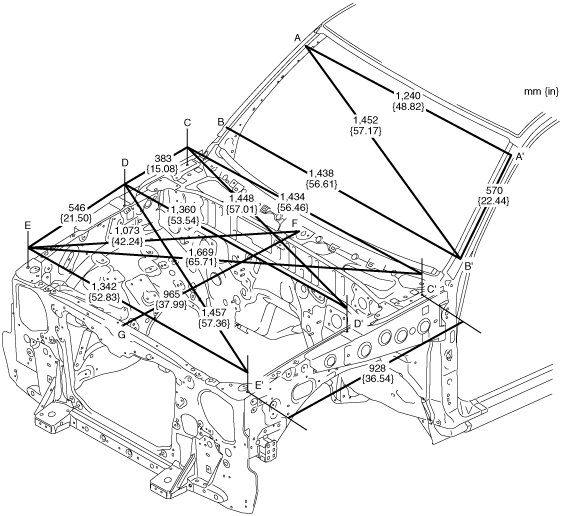

FRONT BODY STRAIGHT-LINE DIMENSIONS (2) [DIMENSIONS]

id098010740700

dbg0980b013

dbg0980b014

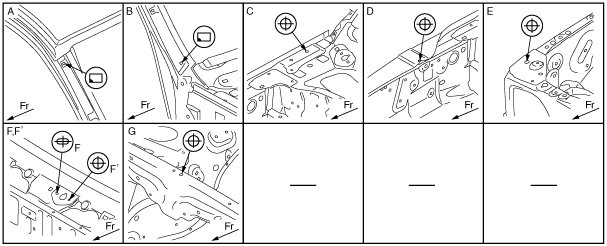

Point symbol	Designation	Hole diameter or bolt or nut size mm {in}
A	Windshield garnish installation square hole	6.8 x 6.8
		{0.27 x 0.27}
B	Windshield garnish installation square hole	6.8 x 6.8
		{0.27 x 0.27}
C	Bonnet hinge installation hole	ø12 {0.47}
D	Front fender installation hole	ø10 {0.39}
E	Shroud gusset datum hole	ø14 {0.55}
F	Cowl panel datum slot	ø6.2 x 8
		{0.24 x 0.31}
F’	Cowl panel datum hole	ø6.2 {0.24}
G	Shroud panel datum hole	ø10 {0.39}
