TIMING BELT DISASSEMBLY [WLT-1, WLT-2, WL-3]

id011097500300

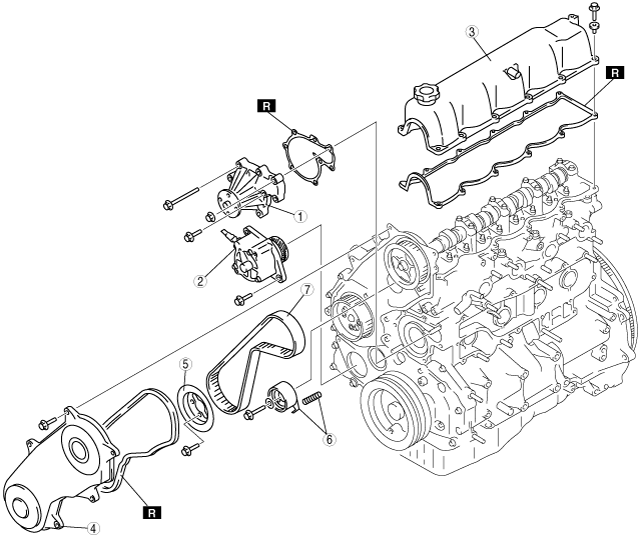

1.  Disassemble in the order shown in the figure.

bwl1ge00000020

1	Water pump
2	Vacuum pump
3	Cylinder head cover
4	Timing belt cover
5	Pulley plate
6	Tensioner, tensioner spring (See Tensioner, Tensioner Spring Disassembly Note.)
7	Timing belt (See Timing Belt Disassembly Note.)

Tensioner, Tensioner Spring Disassembly Note

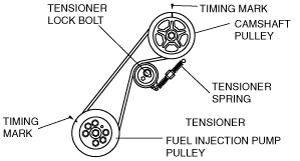

1.  Turn the crankshaft clockwise and align the timing marks as shown in the figure.

bwl1ge00000021

Timing Belt Disassembly Note

1.  Mark the timing belt rotation on the belt for proper reinstallation.

Caution

•  The following will damage the timing belt and shorten its life; forcefully twisting it, turning it inside out, or getting oil or grease on it.

•  After removing the timing belt, do not move the crankshaft and/or camshaft pulley from this position because it can cause the valve and piston to contact and damage them.
