CYLINDER BLOCK DISASSEMBLY (I) [WLT-1, WLT-2, WL-3]

id011097500600

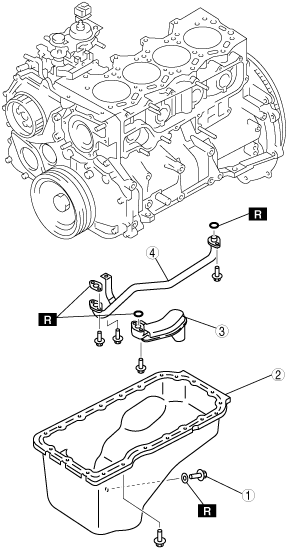

1.  Disassemble in the order shown in the figure.

bwl1ge00000030

1	Oil drain plug
2	Oil pan (See Oil Pan Disassembly Note.)
3	Oil strainer
4	Oil pipe

Oil Pan Disassembly Note

1.  Remove the oil pan using a separator tool.

bwl1ge00000031
