CYLINDER BLOCK ASSEMBLY (III) [WLT-1, WLT-2, WL-3]

id011097504200

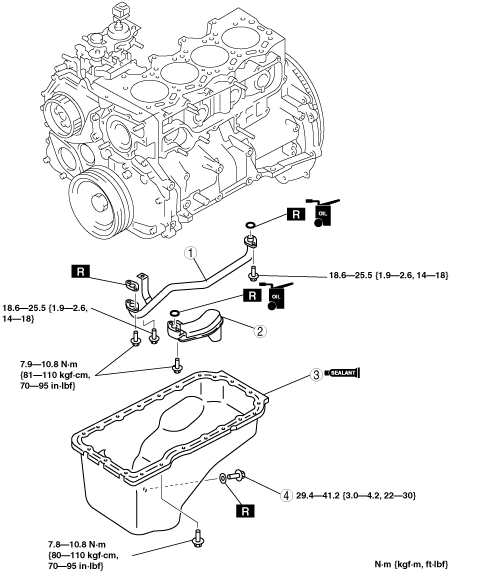

1.  Assemble in the order indicated in the table.

bwl1ge00000120

1
Oil pipe
(See Oil Pipe Assembly Note.)
2
Oil strainer
3
Oil pan
(See Oil Pan Assembly Note.)
4
Oil drain plug


Oil Pipe Assembly Note

1.  Tighten the bolts in two or three steps in the order shown in the figure.

bwl1ge00000121


Oil Pan Assembly Note

1.  Apply silicone sealant to the oil pan as shown in the figure.

bwl1ge00000122

Thickness
φ2.0—3.0 mm {0.08—0.118 in}

2.  Tighten the oil pan bolts A as shown in the figure.

Caution
•  If the bolts are reused, remove the old sealant from the bolt threads. Tightening a bolt that has old sealant on it can cause bolt hole damage.
bwl1ge00000123

3.  Tighten the remaining oil pan bolts in several passes.
