CYLINDER HEAD ASSEMBLY (I) [WLT-1, WLT-2, WL-3]

id011097504300

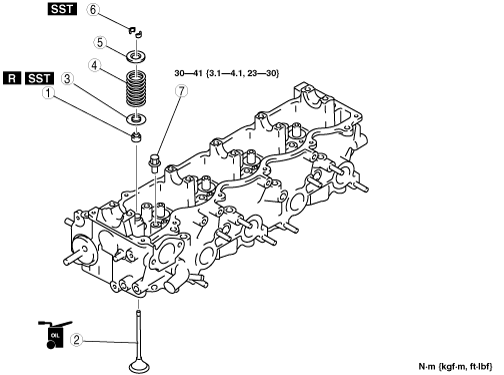

1.  Assemble in the order indicated in the table.

bwl1ge00000124

1
Valve seal
(See Valve Seal Assembly Note.)
2
Valve
3
Lower valve spring seat
4
Valve spring
5
Upper valve spring seat
6
Valve keeper
(See Valve Keeper Assembly Note.)
7
Pivot


Valve Seal Assembly Note

1.  Assemble the SSTs so that depth L is as specified.

bwl1ge00000125

Depth L
15.6 mm {0.614 in}

2.  Press the valve seal onto the valve guide by hand.

3.  Tap the SST using a plastic hammer until its lower end touches the cylinder head.

bwl1ge00000126


Valve Keeper Assembly Note

1.  Install the valve keeper using the SST.

bwl1ge00000127
