ENGINE MOUNTING [WL-C, WE-C]

id0110b6500100

Warning

•  Continuous exposure with USED engine oil has caused skin cancer in laboratory mice. Protect your skin by washing with soap and water immediately after this work.

1.  Install the SST to the cylinder head using the bolt (99784 1020 or M10X1.25, 8T, length 20mm {0.79 in}) as shown in the figure.

bwl1ge00000277

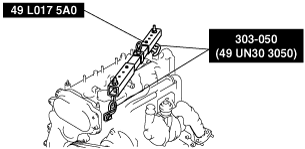

2.  Suspend the engine using the SST.

bwl1ge00000278

3.  Install the SST (arms) to the holes as shown in the figure, and hand tighten the SST (bolts).

bwl1ge00000279

4.  Assemble the SSTs (bolts, nuts and plate) to the specified positions.

bwl1ge00000280

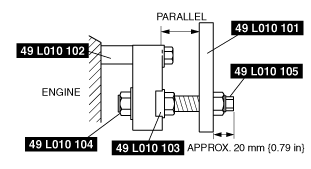

5.  Adjust the SST (bolts) so that 20 mm {0.79 in} or more of thread is exposed.

bwl1ge00000281

6.  Align the SSTs (plate and arms) so that they are parallel by adjusting the SSTs (bolts and nuts).

7.  Tighten the SSTs (bolts and nuts) to affix the SST firmly.

8.  Mount the engine on the SST (engine stand).

bwl1ge00000282

Warning

•  The self-locking brake system for the engine stand may not operate if the engine is held in an unbalanced position. This could lead to sudden, rapid movement of the engine and mounting stand handle and cause serious injury. Never hold the engine in an unbalanced position, and always grasp the rotating handle firmly when turning the engine.

9.  Remove the SST (303-050 (49 UN30 3050)).

10.  Drain the engine oil into a container.

11.  Install the drain plug using new washer.
