CYLINDER HEAD DISASSEMBLY (II) [WL-C, WE-C]
id0110b6500500

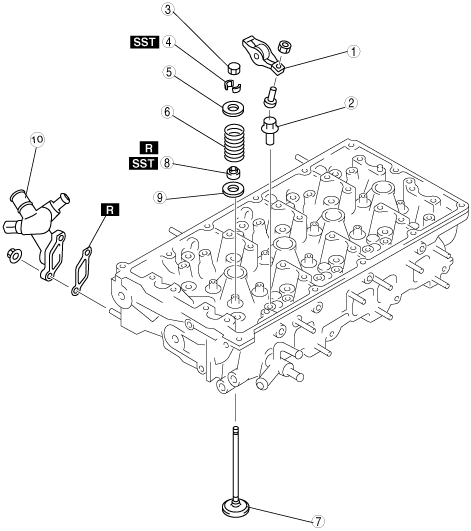

1. Disassemble in the order shown in the figure.
bwl1ge00000208
|
|
1
|
Rocker arm
|
|
2
|
Pivot
|
|
3
|
Valve cap
|
|
4
|
Valve keeper
|
|
5
|
Upper valve spring seat
|
|
6
|
Valve spring
|
|
7
|
Valve
|
|
8
|
Valve seal
(See Valve Seal Disassembly Note.)
|
|
9
|
Lower valve spring seat
|
|
10
|
Water outlet pipe
|
Valve Keeper Disassembly Note
1. Remove the valve keeper using the SST.
bwl1ge00000209
|
Valve Seal Disassembly Note
1. Remove the valve seal using the SST.
bwl1ge00000210
|
