CYLINDER BLOCK DISASSEMBLY (I) [WL-C, WE-C]

id0110b6500600

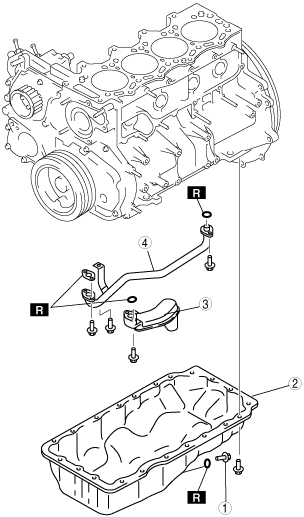

1.  Disassemble in the order shown in the figure.

bwl1ge00000211

1	Oil drain plug
2	Oil pan (See Oil Pan Disassembly Note.)
3	Oil strainer
4	Oil pipe

Oil Pan Disassembly Note

1.  Remove the oil pan using a separator tool.

bwl1ge00000212
