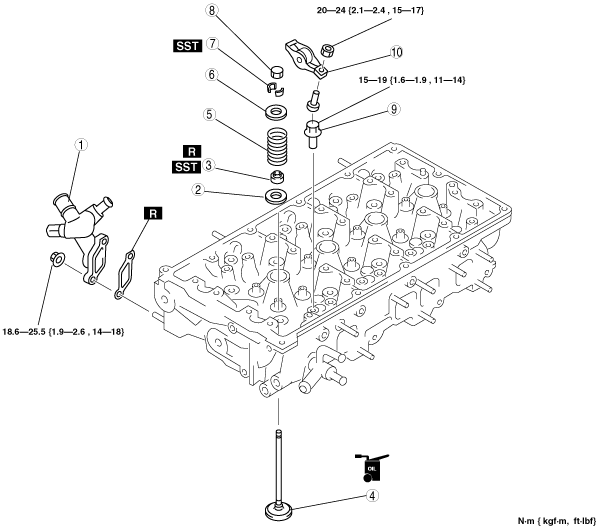

CYLINDER HEAD ASSEMBLY (I) [WL-C, WE-C]
id0110b6504300
1. Assemble in the order indicated in the table.
bwl1ge00000233
|
|
1
|
Water outlet pipe
|
|
2
|
Lower valve spring seat
|
|
3
|
Valve seal
(See Valve Seal Assembly Note.)
|
|
4
|
Valve
|
|
5
|
Valve spring
|
|
6
|
Upper valve spring seat
|
|
7
|
Valve keeper
(See Valve Keeper Assembly Note.)
|
|
8
|
Valve cap
|
|
9
|
Pivot
(See Pivot Assembly Note.)
|
|
10
|
Rocker arm
(See Rocker Arm Assembly Note.)
|
Valve Seal Assembly Note
1. Tap the SST using a plastic hammer.
bwl1ge00000234
|
Valve Keeper Assembly Note
1. Install the valve keeper using the SST.
bwl1ge00000235
|
Pivot Assembly Note
1. Apply adhesive to the thread of the pivot.
Rocker Arm Assembly Note
1. If a new rocker arm is used, set dimension A as follows.
bwl1ge00000236
|
