TOP COVER COMPONENT AND EXTENSION HOUSING DISASSEMBLY
id051100501200
1. Disassemble in the order indicated in the table.

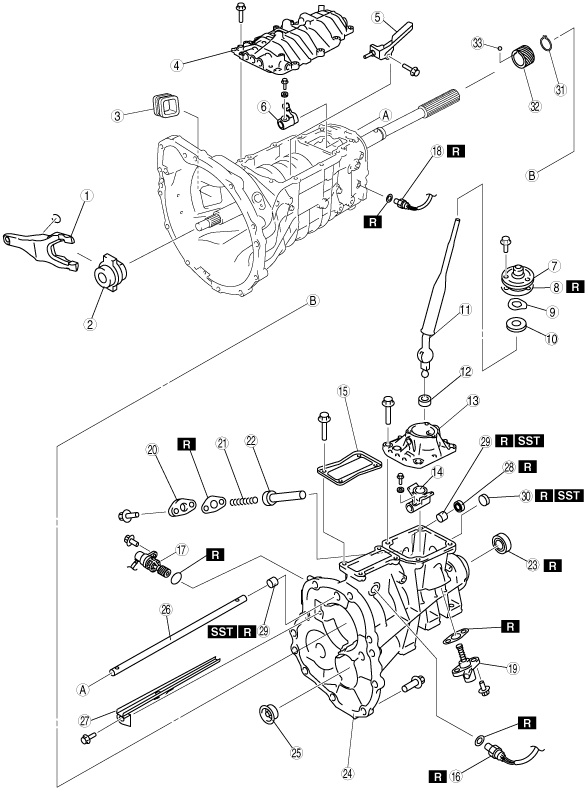

4x2
bms1zm00000090
|
|
1
|
Release fork
|
|
2
|
Release collar
|
|
3
|
Dust boot
|
|
4
|
Top cover, shift component
(See Top Cover Disassembly Note.)
|
|
5
|
Oil passage
|
|
6
|
Control lever
|
|
7
|
Dust boot
|
|
8
|
Gasket
|
|
9
|
Wave washer
|
|
10
|
Change bush
|
|
11
|
Shift lever
|
|
12
|
Change seat
|
|
13
|
Control case
|
|
14
|
Control rod end
|
|
15
|
Blind cover
|
|
16
|
Neutral switch
|
|
17
|
Vehicle speed sensor
|
|
18
|
Back-up light switch
|
|
19
|
Select spindle component
|
|
20
|
Spring cap
|
|
21
|
Select lock spindle spring
|
|
22
|
Select lock spindle
|
|
23
|
Oil seal (extension housing)
|
|
24
|
Extension housing
|
|
25
|
Funnel
|
|
26
|
Control rod
|
|
27
|
Oil passage
|
|
28
|
Oil seal (control rod)
|
|
29
|
Bush
(See Bush Disassembly Note.)
|
|
30
|
Sealing cap
(See Sealing Cap Disassembly Note.)
|
|
31
|
Retaining ring
|
|
32
|
Speed drive gear
|
|
33
|
Steel ball
|

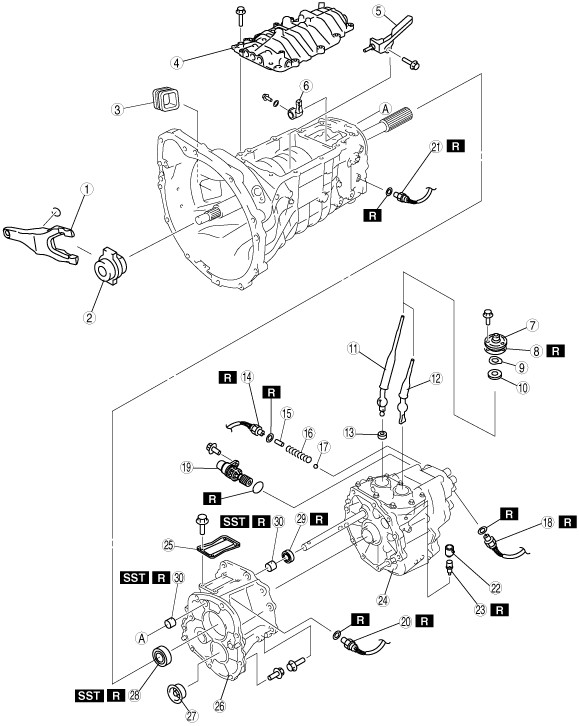

4x4
bms1zm00000091
|
|
1
|
Release fork
|
|
2
|
Release collar
|
|
3
|
Dust boot
|
|
4
|
Top cover, shift component
(See Top Cover Disassembly Note.)
|
|
5
|
Oil passage
|
|
6
|
Control rod end
|
|
7
|
Dust boot
|
|
8
|
Gasket
|
|
9
|
Wave washer
|
|
10
|
Change bush
|
|
11
|
Shift lever
|
|
12
|
Transfer shift lever
|
|
13
|
Change seat
|
|
14
|
Transfer neutral switch
|
|
15
|
Switch pin
|
|
16
|
Spring
|
|
17
|
Steel ball
|
|
18
|
4x4 indicator switch
|
|
19
|
Vehicle speed sensor
|
|
20
|
Neutral switch
|
|
21
|
Back-up light switch
|
|
22
|
Breather dust boot
|
|
23
|
Breather
|
|
24
|
Transfer
|
|
25
|
Blind cover
|
|
26
|
Extension housing
|
|
27
|
Funnel
|
|
28
|
Oil seal (extension housing)
|
|
29
|
Oil seal (control rod)
|
|
30
|
Bush
(See Bush Disassembly Note.)
|
Oil Seal (extension housing) Removal Note
1. Remove the oil seal using a flathead screwdriver as shown in the figure.
4x2
bms1zm00000092
|
4x4
bms1zm00000093
|
Top Cover Disassembly Note
1. Pry the seal open at the projection on the case using a flathead screwdriver or similar tool as shown in the figure, and then remove the top cover.
bms1zm00000094
|
Extension Housing Disassembly Note
1. Remove the extension housing component.
bms1zm00000095
|
Oil Seal (control rod) Disassembly Note
1. Using a flathead screwdriver, remove the oil seal as shown in the figure.
4x2
bms1zm00000096
|
4x4
bms1zm00000097
|
Sealing Cap Disassembly Note
1. Remove the sealing cap using the SST.
bms1zm00000098
|
Bush Disassembly Note
4x2
1. Remove the bush using the SST.
bms1zm00000099
|
2. Remove the bush using the suitable steel bar through the sealing cap hole as shown in the figure.
bms1zm00000100
|
4x4
1. Remove the bush using the SST.
Front side
bms1zm00000101
|
Rear side
bms1zm00000102
|
