SHIFT COMPONENT DISASSEMBLY
id051100501600
1. Disassemble in the order indicated in the table.

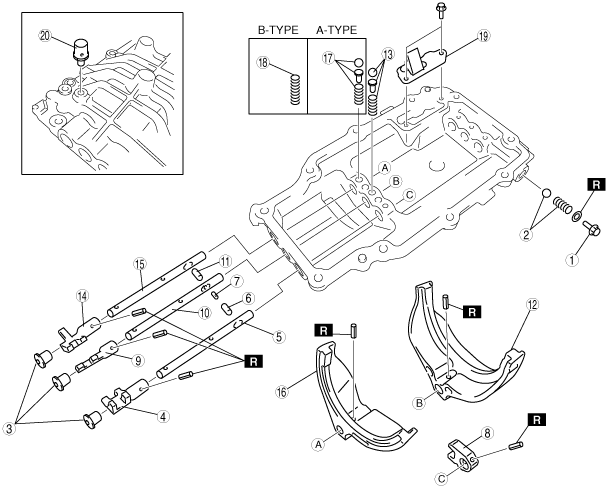

4x2
bms1zm00000238
|
|
1
|
Retaining bolt
|
|
2
|
Detent ball, spring
|
|
3
|
Rubber plug
|
|
4
|
5th/reverse shift rod end
|
|
5
|
5th/reverse shift rod
(See Shift Rod Disassembly Note.)
|
|
6
|
Interlock pin
|
|
7
|
Interlock pin
|
|
8
|
Stopper block
|
|
9
|
3rd/4th shift rod end
|
|
10
|
3rd/4th shift rod
(See Shift Rod Disassembly Note.)
|
|
11
|
Interlock pin
|
|
12
|
3rd/4th shift fork
|
|
13
|
Detent ball, spring seat, spring
|
|
14
|
1st/2nd shift rod end
|
|
15
|
1st/2nd shift rod
(See Shift Rod Disassembly Note.)
|
|
16
|
1st/2nd shift fork
|
|
17
|
Detent ball, spring seat, spring [A-type]
|
|
18
|
Spring [B-type]
|
|
19
|
Baffle plate
|
|
20
|
Breather
|

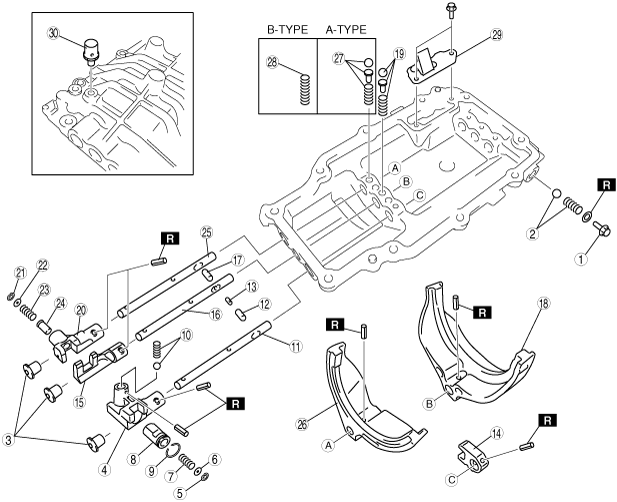

4x4
bms1zm00000239
|
|
1
|
Retaining bolt
|
|
2
|
Detent ball, spring
|
|
3
|
Rubber plug
|
|
4
|
5th/reverse shift rod end
|
|
5
|
Retaining ring
|
|
6
|
Plain washer
|
|
7
|
Spring
|
|
8
|
Push pin
|
|
9
|
Retaining ring
|
|
10
|
Detent ball, spring
|
|
11
|
5th/reverse shift rod
(See Shift Rod Disassembly Note.)
|
|
12
|
Interlock pin
|
|
13
|
Interlock pin
|
|
14
|
Stopper block
|
|
15
|
3rd/4th shift rod end
|
|
16
|
3rd/4th shift rod
(See Shift Rod Disassembly Note.)
|
|
17
|
Interlock pin
|
|
18
|
3rd/4th shift fork
|
|
19
|
Detent ball, spring seat, spring
|
|
20
|
1st/2nd shift rod end
|
|
21
|
Retaining ring
|
|
22
|
Plain washer
|
|
23
|
Spring
|
|
24
|
Push pin
|
|
25
|
1st/2nd shift rod
(See Shift Rod Disassembly Note.)
|
|
26
|
1st/2nd shift fork
|
|
27
|
Detent ball, spring seat, spring [A-type]
|
|
28
|
Spring [B-type]
|
|
29
|
Baffle plate
|
|
30
|
Breather
|
Shift Rod Disassembly Note
1. Remove the spring pins from each of the shift rods using a pin punch.
bms1zm00000144
|
2. Place the shift mechanism in the neutral position.
3. Pull out the shift rods from the top cover.
bms1zm00000145
|
