SHIFT COMPONENT ASSEMBLY
id051100501700
1. Assemble in the order indicated in the table.

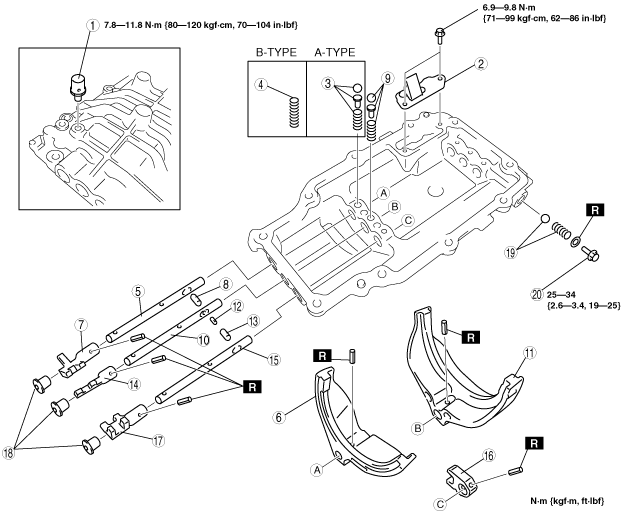

4x2
bms1zm00000240
|
|
1
|
Breather
|
|
2
|
Baffle plate
|
|
3
|
Detent ball, spring seat, spring [A-type]
|
|
4
|
Spring [B-type]
|
|
5
|
1st/2nd shift rod
(See Shift Rod Assembly Note.)
|
|
6
|
1st/2nd shift fork
|
|
7
|
1st/2nd shift rod end
|
|
8
|
Interlock pin
|
|
9
|
Detent ball, spring seat, spring
|
|
10
|
3rd/4th shift rod
(See Shift Rod Assembly Note.)
|
|
11
|
3rd/4th shift fork
|
|
12
|
Interlock pin
|
|
13
|
Interlock pin
|
|
14
|
3rd/4th shift rod end
|
|
15
|
5th/reverse shift rod
(See Shift Rod Assembly Note.)
|
|
16
|
Stopper block
|
|
17
|
5th/reverse shift rod end
|
|
18
|
Rubber plug
|
|
19
|
Detent ball, spring
|
|
20
|
Retaining bolt
|

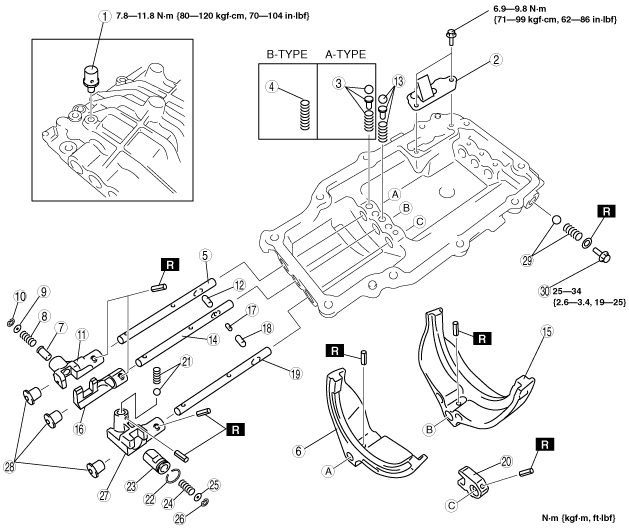

4x4
bms1zm00000241
|
|
1
|
Breather
|
|
2
|
Baffle plate
|
|
3
|
Detent ball, spring seat, spring [A-type]
|
|
4
|
Spring [B-type]
|
|
5
|
1st/2nd shift rod
(See Shift Rod Assembly Note.)
|
|
6
|
1st/2nd shift fork
|
|
7
|
Push pin
|
|
8
|
Spring
|
|
9
|
Plain washer
|
|
10
|
Retaining ring
|
|
11
|
1st/2nd shift rod end
|
|
12
|
Interlock pin
|
|
13
|
Detent ball, spring seat, spring
|
|
14
|
3rd/4th shift rod
(See Shift Rod Assembly Note.)
|
|
15
|
3rd/4th shift fork
|
|
16
|
3rd/4th shift rod end
|
|
17
|
Interlock pin
|
|
18
|
Interlock pin
|
|
19
|
5th/reverse shift rod
(See Shift Rod Assembly Note.)
|
|
20
|
Stopper block
|
|
21
|
Detent ball, spring
|
|
22
|
Retaining ring
|
|
23
|
Push pin
(See Push Pin Assembly Note.)
|
|
24
|
Spring
|
|
25
|
Plain washer
|
|
26
|
Retaining ring
|
|
27
|
5th/reverse shift rod end
|
|
28
|
Rubber plug
|
|
29
|
Detent ball, spring
|
|
30
|
Retaining bolt
|
Shift Rod Assembly Note
1. Install each shift rod.
bms1zm00000172
|
Push Pin Assembly Note
1. Install the push pin.
bms1zm00000173
|
