LOW/REVERSE BRAKE SERVO COMPONENT DISASSEMBLY/ASSEMBLY

id051300264600

Disassembly

b5r5za00000360

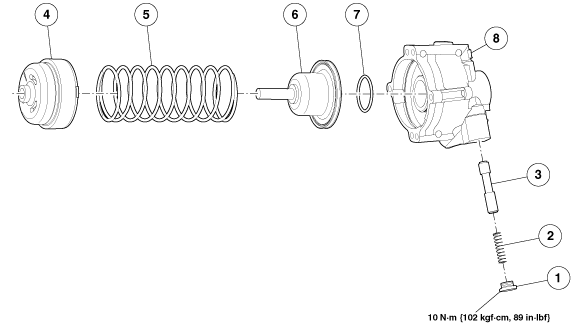

1	Control valve spring retainer
2	Spring
3	Low/reverse brake servo check valve
4	Low/reverse brake servo plate
5	Spring
6	Low/reverse brake servo piston and seal
7	O-ring
8	Low/reverse brake servo cover

1.  Remove the control valve spring retainer.

b5r5za00000176

2.  Remove the low/reverse brake servo spring and check valve.

b5r5za00000177

Warning

•  The upper and lower servo covers are under spring tension. Use care when separating the 2 halves. Failure to follow these instructions can result in personal injury.

3.  Remove the low/reverse brake servo plate by turning in either direction to release.

b5r5za00000178

•  Align the arrow on the servo plate with any slot on the cover.

Note

•  Tabs on servo plate mate with slots on cover every 120 degrees.

4.  Remove the spring.

b5r5za00000179

5.  Remove the low/reverse brake servo piston and seal component.

b5r5za00000180

•  Inspect the seal for damage, install a new low/reverse brake servo piston if necessary.

6.  Remove and discard the low/reverse brake servo piston seal.

b5r5za00000181

Assembly

1.  Lubricate and install a new low/reverse brake servo piston seal.

b5r5za00000181

Note

•  Try not to roll the seal onto the housing when installing the seal, or damage to the seal can occur.

2.  Lubricate and install the low/reverse brake servo piston and seal component.

b5r5za00000180

3.  Install the spring.

b5r5za00000179

Warning

•  The upper and lower servo covers are under spring tension. Use care when assembling the 2 halves. Failure to follow these instructions can result in personal injury.

Caution

•  The arrow on the servo plate must be aligned evenly between any 2 slots on the cover.

4.  Install the low/reverse brake servo plate.

b5r5za00000182

5.  Install the spring and low/reverse brake servocheck valve.

b5r5za00000177

6.  Install the control valve spring retainer.

b5r5za00000176
