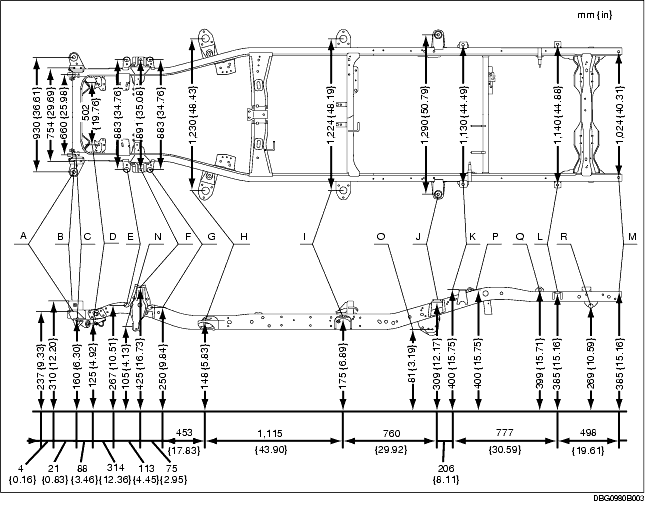

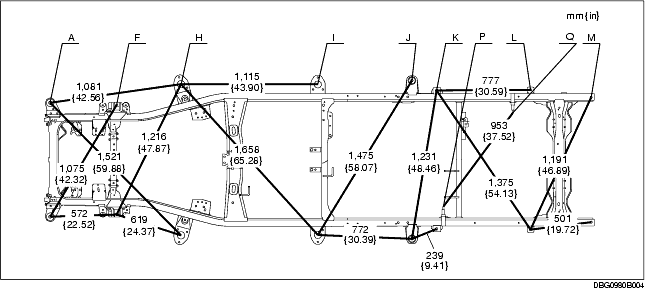

Point symbol
|
Designation
|
Hole diameter or bolt or nut size mm {in}
|
|
A
|
Cabin mounting bracket No.1
|
ø27 {1.06}
|
|
B
|
Bumper stay bracket
|
ø15 {0.59}
|
|
C
|
Tie down hook mounting hole
|
ø13.5 {0.53}
|
|
D
|
Front suspension bracket tension rod
|
ø25 {0.98}
|
|
E
|
Rebound stopper bracket
|
ø12.5 {0.49}
|
|
F
|
Front suspension bracket
|
ø16 {0.63}
|
|
G
|
Rebound stopper bracket
|
ø12.5 {0.49}
|
|
H
|
Cabin mounting bracket No.2
|
ø60 {2.36}
|
|
I
|
Cabin mounting bracket No.3
|
ø65 {2.56}
|
|
J
|
Cabin mounting bracket No.4
|
ø30 {1.18}
|
|
K
|
Box bracket No.1
|
ø16 {0.63}
|
|
K'
|
Box bracket No.1
|
ø20 {0.79}
|
|
L
|
Box bracket No.3
|
ø16 x 23
|
|
{0.63 x 0.91}
|
|
L'
|
Box bracket No.3
|
ø20 {0.79}
|
|
M
|
Box mounting hole
|
ø20 {0.79}
|
|
N
|
Front suspension bracket
|
ø48.5 {1.91}
|
|
O
|
Front spring hanger
|
ø14 {0.55}
|
|
P
|
Dumper bracket
|
M12 {0.47}
|
|
Q
|
Dumper bracket
|
M12 {0.47}
|
|
R
|
Rear spring hanger
|
ø32 {1.26}
|
