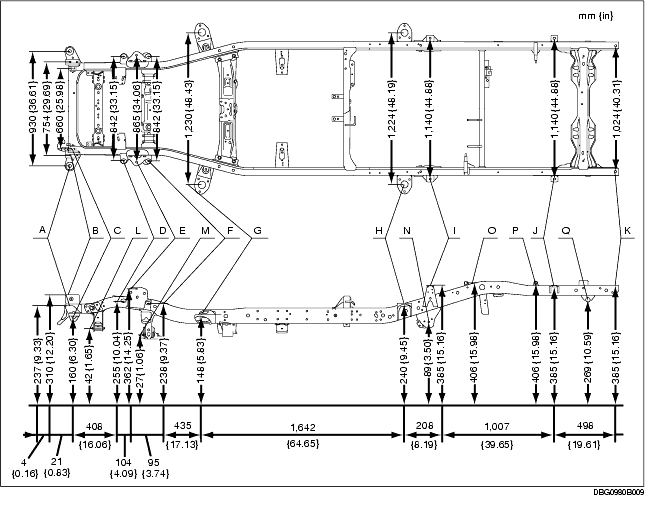

FRAME DIMENSIONS (UNDERBODY FREESTYLE CAB {HIGH CLEARANCE MODEL})


Point symbol	Designation	Hole diameter or bolt or nut size mm {in}
A	Cabin mounting bracket No.1	ø27 {1.06}
B	Bumper stay bracket	ø15 {0.59}
C	Tie down hook mounting hole	ø13.5 {0.53}
D	Rebound stopper bracket	ø12.5 {0.49}
E	Front suspension bracket	ø16 {0.63}
F	Rebound stopper bracket	ø12.5 {0.49}
G	Cabin mounting bracket No.2	ø60 {2.36}
H	Cabin mounting bracket No.3	ø65 {2.56}
I	Box bracket No.1	ø16 {0.63}
I'	Box bracket No.1	ø20 {0.79}
J	Box bracket No.3	ø16 x 23
J	Box bracket No.3	{0.63 x 0.91}
J'	Box bracket No.3	ø20 {0.79}
K	Box mounting hole	ø20 {0.79}
L	Front suspension bracket	ø16.5 {0.65}
M	Front suspension bracket	ø40 {1.57}
N	Front spring hanger	ø14 {0.55}
O	Dumper bracket	M12 {0.47}
P	Dumper bracket	M12 {0.47}
Q	Rear spring hanger	ø32 {1.26}

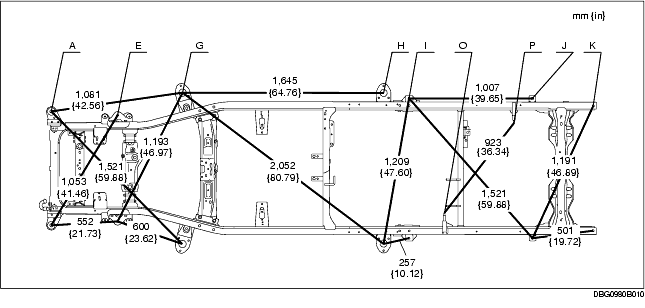

Flat-plane dimensions
