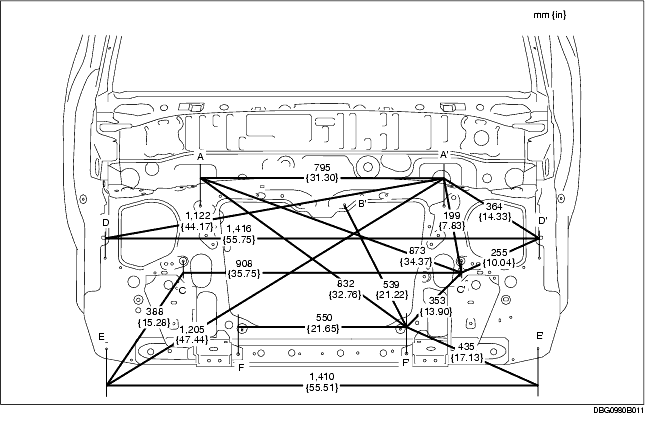

FRONT BODY STRAIGHT-LINE DIMENSIONS (1)

DBG098053020B01

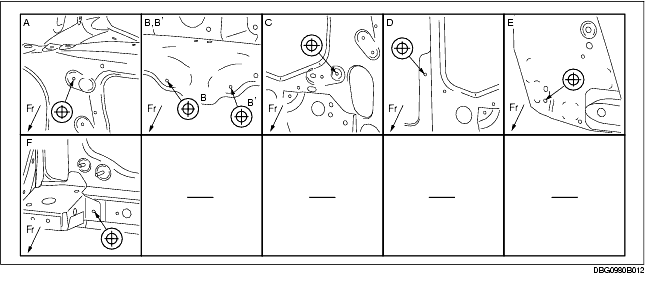

Point symbol

Designation

Hole diameter or bolt or nut size mm {in}

A
Shroud panel datum hole
ø7 {0.28}
B
Shroud panel datum hole
ø7 {0.28}
C
Shroud panel datum hole
ø7 {0.28}
D
Shroud panel datum hole
ø7 {0.28}
E
Shroud panel datum hole
ø6.2 {0.24}
F
Crossmember datum hole
ø10 {0.39}
