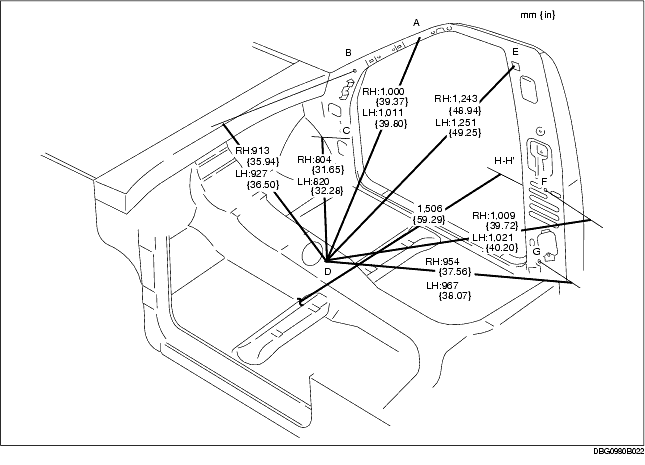

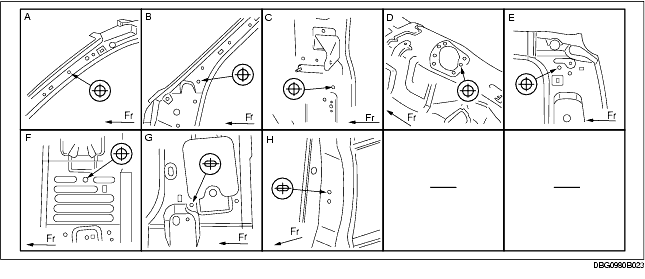

Point symbol
|
Designation
|
Hole diameter or bolt or nut size mm {in}
|
|
A
|
Harness installation hole
|
ø7 {0.28}
|
|
B
|
Front pillar inner datum hole
|
ø10 {0.39}
|
|
C
|
Cowl side panel datum hole
|
ø12 {0.47}
|
|
D
|
Tunnel reinforcement installation hole
|
ø7 {0.28}
|
|
E
|
Rear pillar inner datum hole
|
ø12 {0.47}
|
|
F
|
Rear pillar inner datum hole
|
ø12 {0.47}
|
|
G
|
Rear pillar inner datum slot
|
ø8 x 12
|
|
{0.31 x 0.47}
|
|
H
|
Striker installation slot
|
ø8.2 x 7.6
|
|
{0.32 x 0.30}
|
