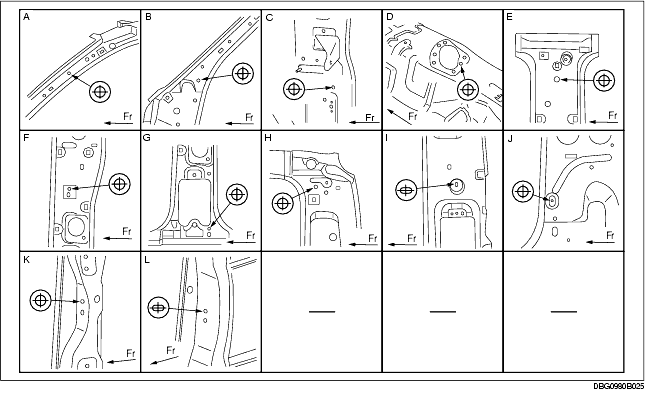

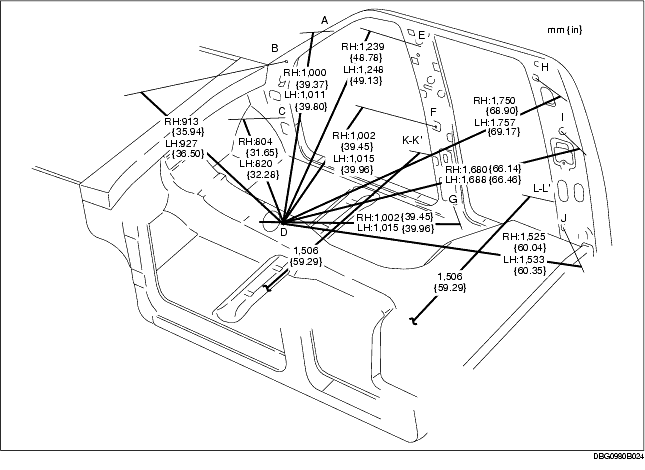

Point symbol
|
Designation
|
Hole diameter or bolt or nut size mm {in}
|
|
A
|
Harness installation hole
|
ø7 {0.28}
|
|
B
|
Front pillar inner datum hole
|
ø10 {0.39}
|
|
C
|
Cowl side panel datum hole
|
ø12 {0.47}
|
|
D
|
Tunnel reinforcement installation hole
|
ø7 {0.28}
|
|
E
|
Center pillar inner datum hole
|
ø7 {0.28}
|
|
F
|
Center pillar inner datum hole
|
ø7 {0.28}
|
|
G
|
Center pillar inner datum hole
|
ø7 {0.28}
|
|
H
|
Rear pillar inner datum hole
|
ø12 {0.47}
|
|
I
|
Rear pillar inner datum slot
|
ø7 x 9
|
|
{0.28 x 0.35}
|
|
J
|
Rear pillar inner datum hole
|
ø6 {0.24}
|
|
K
|
Striker installation hole
|
ø10.2 {0.40}
|
|
L
|
Striker installation slot
|
ø8.2 x 7.6
|
|
{0.32 x 0.30}
|
