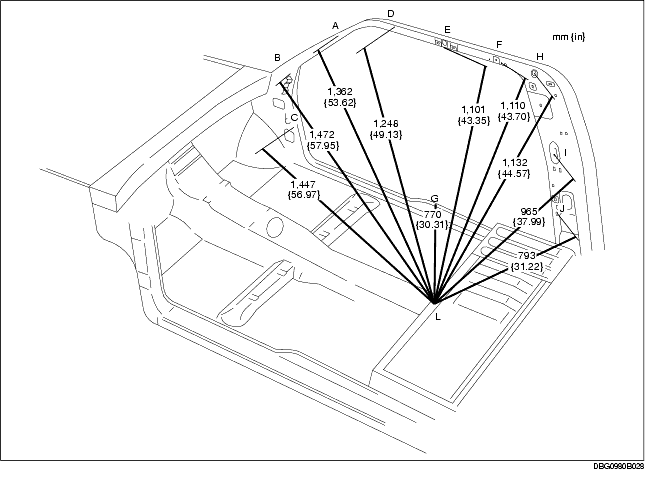

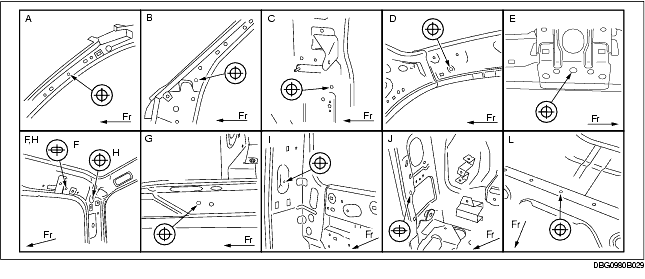

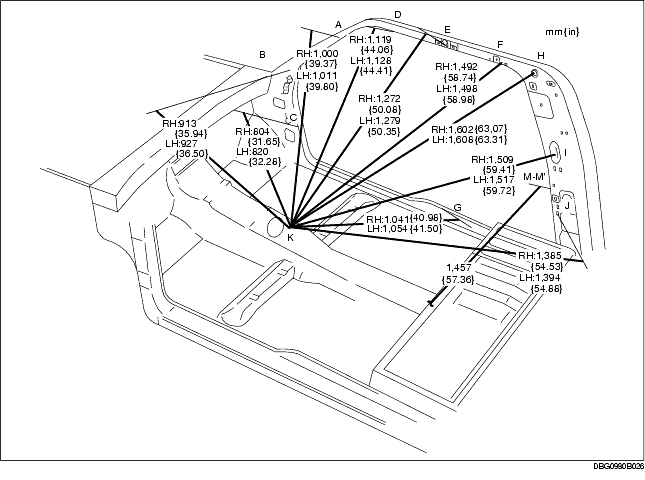

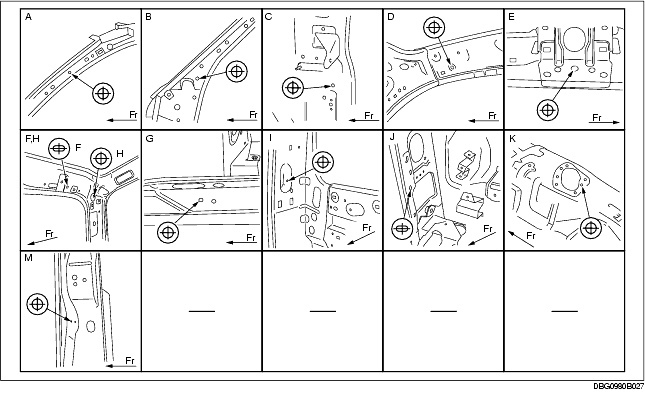

Point symbol
|
Designation
|
Hole diameter or bolt or nut size mm {in}
|
|
A
|
Harness installation hole
|
ø7 {0.28}
|
|
B
|
Front pillar inner datum hole
|
ø10 {0.39}
|
|
C
|
Cowl side panel datum hole
|
ø12 {0.47}
|
|
D
|
Trim installation hole
|
ø10 {0.39}
|
|
E
|
Striker installation hole
|
ø7 {0.28}
|
|
F
|
Trim installation slot
|
ø10 x 15
|
|
{0.39 x 0.59}
|
|
G
|
Striker installation hole
|
ø13 {0.51}
|
|
H
|
Rear pillar inner datum hole
|
ø12 {0.47}
|
|
I
|
Pillar trim datum hole
|
ø6 {0.24}
|
|
J
|
Pillar trim datum slot
|
ø10 x 20
|
|
{0.39 x 0.79}
|
|
K
|
Tunnel reinforcement datum hole
|
ø7 {0.28}
|
|
M
|
Side frame outer datum hole
|
ø10 {0.39}
|
