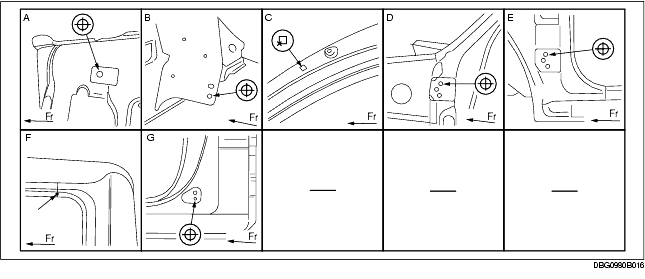

Point symbol
|
Designation
|
Hole diameter or bolt or nut size mm {in}
|
|
A
|
Wheel apron panel front datum hole
|
ø12 {0.47}
|
|
B
|
Shroud panel datum hole
|
ø7 {0.28}
|
|
C
|
Windshield garnish installation square hole
|
6.8 x 6.8
|
|
{0.27 x 0.27}
|
|
D
|
Door hinge installation hole
|
ø12 {0.47}
|
|
E
|
Door hinge installation hole
|
ø12 {0.47}
|
|
F
|
Side frame outer connection
|
-
|
|
G
|
Side frame outer datum hole
|
ø3.2 {0.13}
|
