ON-BOARD DIAGNOSTIC TEST [F2]

id010294801000

DTC Reading Procedure

Using M-MDS

1. Connect the M-MDS to the DLC-2.

arnffw00001137

2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.

• When using the IDS (laptop PC)

1. Select the “Toolbox” tab.

2. Select “Self Test”.

3. Select “Modules”.

4. Select “PCM”.

• When using the PDS (Pocket PC)

1. Select “Module Tests”.

2. Select “PCM”.

3. Select “Self Test”.

3. Then, select the “Retrieve CMDTCs” and perform procedures according to directions on the M-MDS screen.

4. Verify the DTC according to the directions on the M-MDS screen.

• If any DTCs are displayed, perform troubleshooting according to the corresponding DTC inspection.

5. After completion of repairs, clear all DTCs stored in the PCM, while referring to “AFTER REPAIR PROCEDURE“.

Using voltmeter

1. Turn the ignition switch off.

Caution

• Connecting the wrong DLC terminals may possibly cause a malfunction. Carefully connect the specified terminals only.

2. Short the DLC terminal TEN to body ground using a jumper wire.

absggw00000710

absggw00000217

3. Connect the negative lead of voltmeter (20 V range) to the DLC terminal FEN, and positive lead to the DLC terminal B+.

4. Turn the ignition switch to the ON position. (Engine off)

5. The voltmeter indicates the battery positive voltage for approx. 3 s, then indicates 0 V.

Note

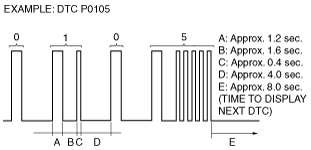

• The DTC will be output as shown.

absggw00000218

6. Read the DTCs indicated by the movement of the voltmeter’s needle.

• If no DTC is detected, the needle does not move.

PID/DATA Monitor and Record Procedure

Note

• The PID/DATA MONITOR function monitors the calculated value of the input/output signals in the PCM. Therefore, an output device malfunction is not directly indicated as a malfunction of the monitored value for the output device. If a monitored value of an output device is out of specification, inspect the monitored value of the input device related to the output control.
