DTC 09 [WLT-2]
id010297235700
|
DTC 09 |
ENGINE COOLANT TEMPERATURE (ECT) |
|---|---|
|
DETECTION CONDITION
|
• Input value to PCM is excessively high or low for more than 2.0 S.
|
|
POSSIBLE CAUSE
|
• ECT sensor malfunction

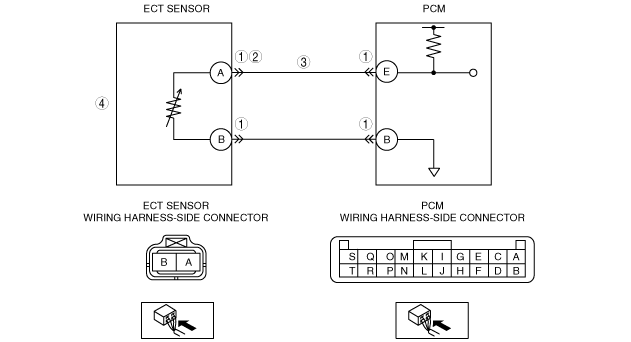

• Open or short circuit in wiring from ECT sensor terminal A to PCM terminal E
• Open or short circuit in wiring from ECT sensor terminal B to PCM terminal B
|
 |
|
Diagnostic procedure
|
STEP |
INSPECTION |
ACTION |
|
|---|---|---|---|
|
1
|
Does ECT sensor or PCM connector have poor connection?
|
Yes
|
Repair or replace connector, then go to Step 6.
|
|
No
|
Go to the next step.
|
||
|
2
|
Disconnect ECT sensor connector.
Turn engine switch on.
Is there 5 V at connector terminal A?
|
Yes
|
Go to the next step.
|
|
No
|
Inspection for open or short circuit in wiring harness.
(PCM terminal B and ECT sensor terminal B)
|
||
|
3
|
Is there continuity between connector terminal A and PCM terminal E?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace wiring harness, then go to Step 6.
|
||
|
4
|
Is ECT sensor normal?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the ECT sensor, then go to Step 6.
|
||
|
5
|
Clear DTC from memory.
Is same code No. present after performing “After Repair Procedure”?
|
Yes
|
Go to Step 1.
|
|
No
|
Intermittent poor connection in harnesses or connector.
Repair connectors and/or harnesses, then go to the next step.
|
||
|
6
|
Is there any No. present after performing “After Repair Procedure”?
|
Yes
|
Go to applicable DTC inspection.
(See DTC TABLE [WLT-2].)
|
|
No
|
Troubleshooting completed.
|
||
