ON-BOARD DIAGNOSTIC OUTLINE [WL-C, WE-C (Thailand, General (L.H.D. R.H.D.) specs.)]

id0102b0100100

Features

Improved serviceability

•  DTCs adopted •  KOEO/KOER self-test function adopted •  PID/DATA monitor function adopted •  Simulation test function adopted

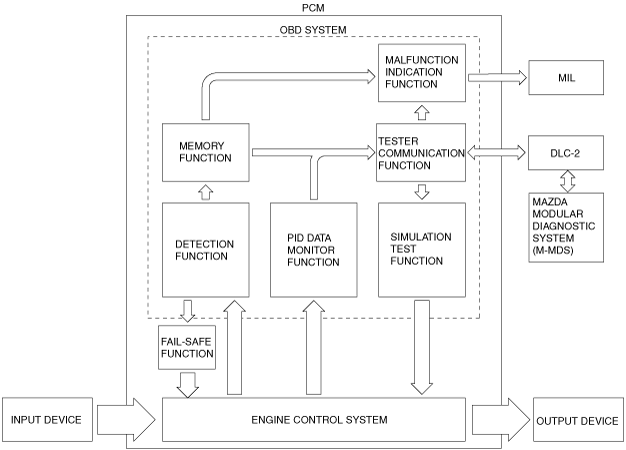

Block Diagram

atraan00000417
