ON-BOARD DIAGNOSTIC WIRING DIAGRAM [WL-C, WE-C (Thailand, General (L.H.D. R.H.D.) specs.)]

id0102b0142400

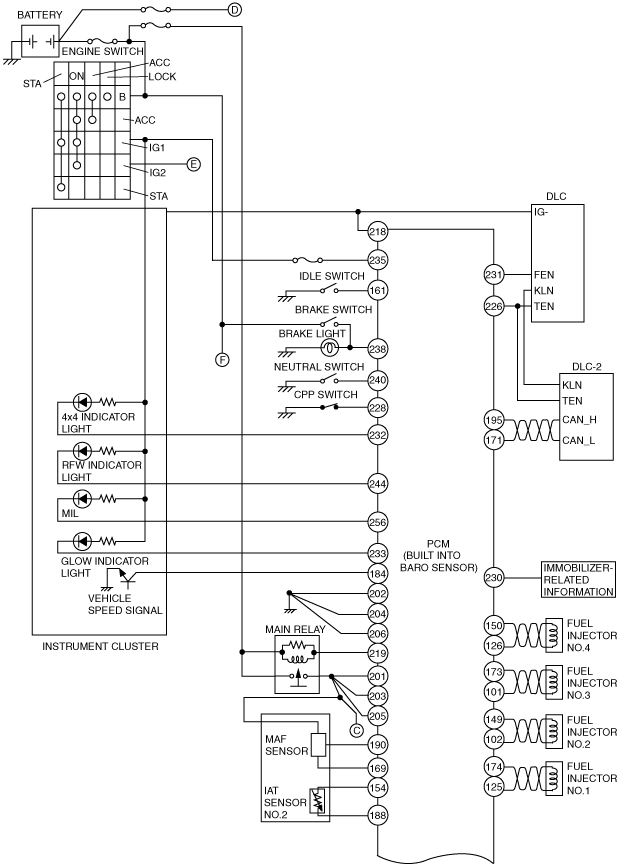

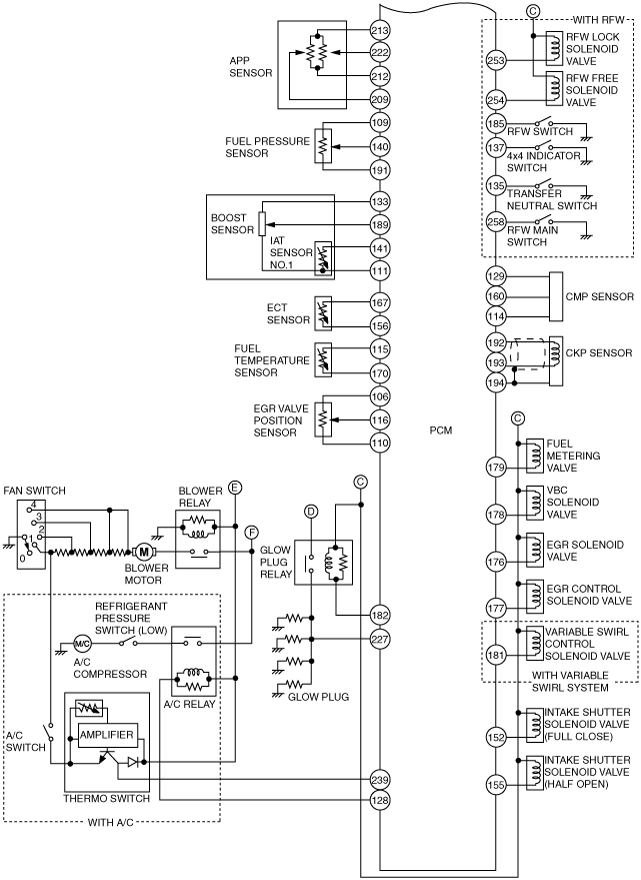

With Immobilizer System

absggn00000459

absggn00000460

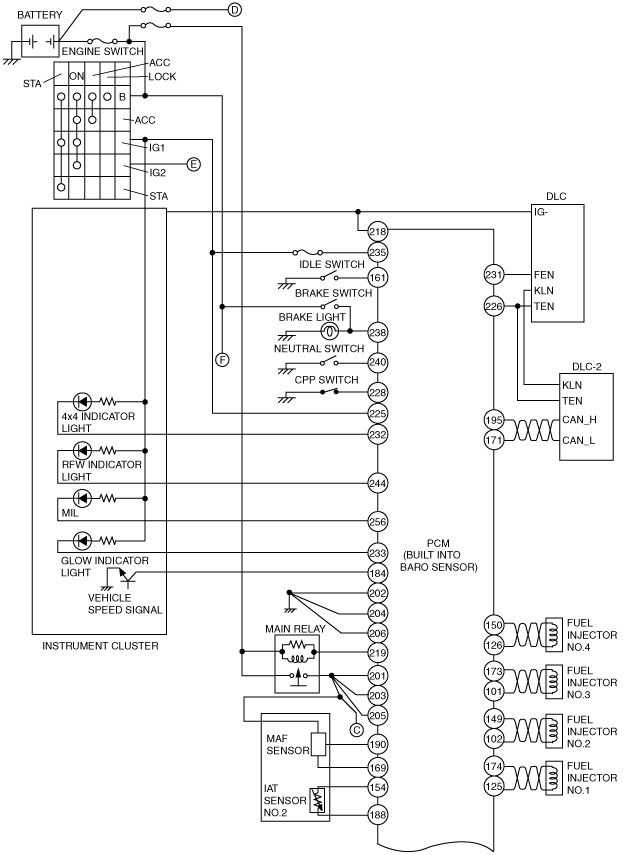

Without Immobilizer System

absggn00000461

absggn00000460
