ON-BOARD DIAGNOSTIC WIRING DIAGRAM [WL-C, WE-C (Thailand, General (L.H.D. R.H.D.) specs.)]

id0102b0800100

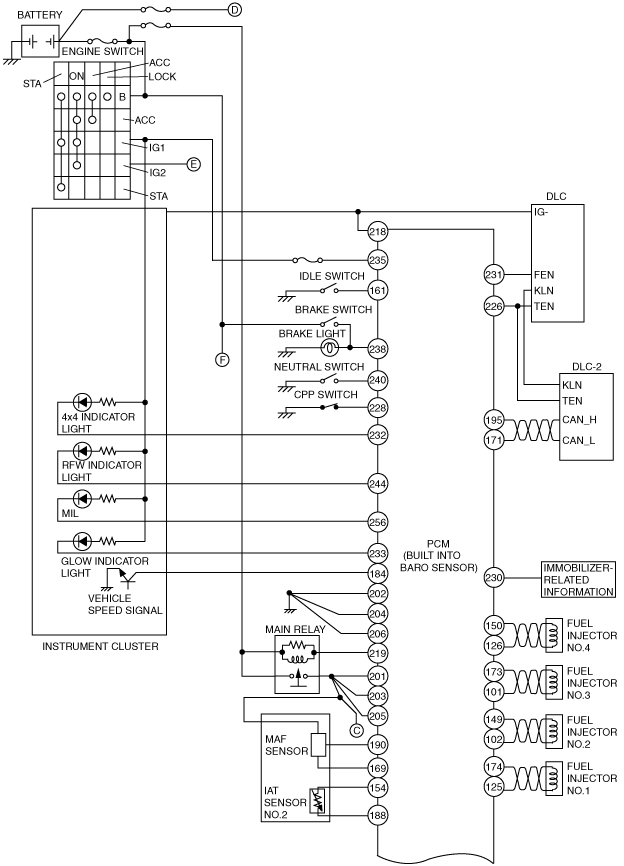

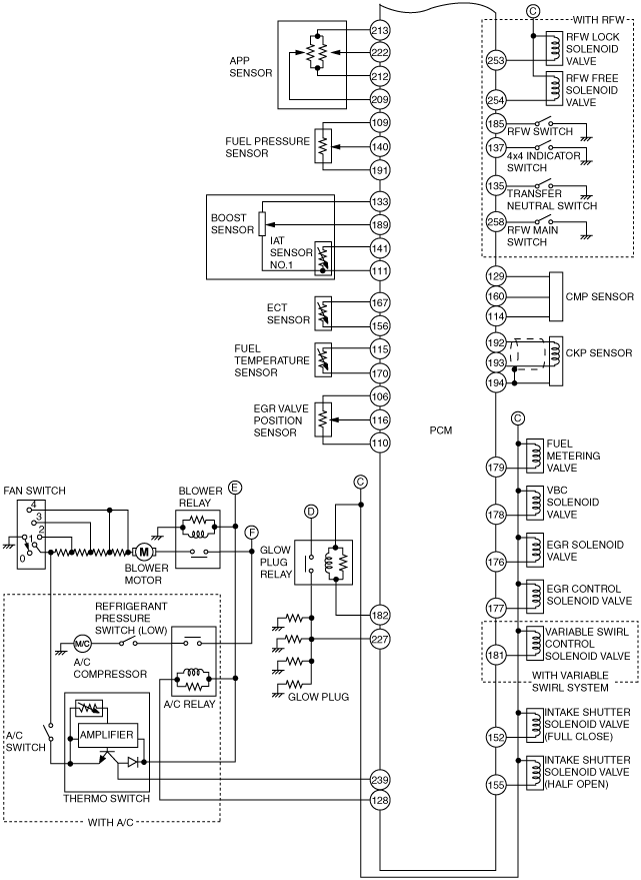

With Immobilizer System

absggw00002145

absggw00002146

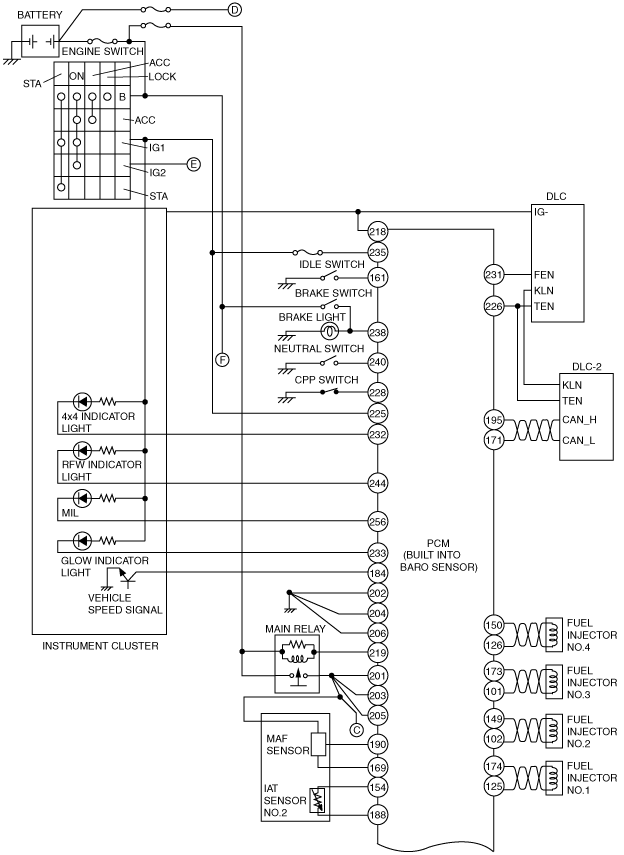

Without Immobilizer System

absggw00002147

absggw00002146
