KOEO/KOER SELF TEST [WL-3]

id0102b8801200

Note

•  Warm up until the exhaust gas temperature (EXHTEMP1, EXHTEMP2, EXHTEMP3 PID) is 100 °C {212°F} or more before performing “KOER SELF TEST”.

1.  Connect the M-MDS to the DLC.

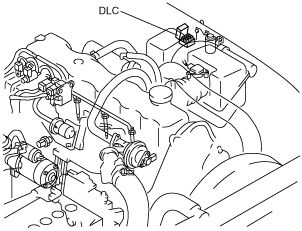

absggw00002032

2.  After the vehicle is identified, select the following items from the initial screen of the M-MDS.

•  When using the IDS (notebook PC)

1.  Select the “Toolbox” tab.

2.  Select “SelfTest”.

3.  Select “Module”.

4.  Select “PCM”.

•  When using the PDS (pocket PC)

1.  Select “Module Tests”.

2.  Select “PCM”.

3.  Select “SelfTest”.

3.  Then, select the “KOEO On Demand SelfTest” or “KOER On Demand SelfTest”and perform procedures according to directions on the M-MDS screen.

4.  Verify the DTC according to the directions on the M-MDS screen.

•  If any DTCs are displayed, perform troubleshooting according to the corresponding DTC inspection.

5.  After completion of repairs, clear all DTCs stored in the PCM, while referring to “AFTER REPAIR PROCEDURE“.
