1
|

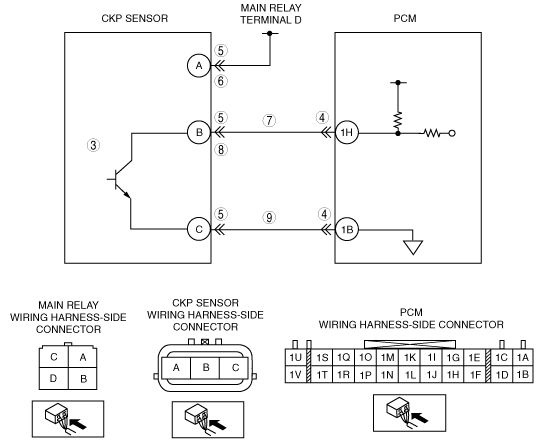

VERIFY RELATED REPAIR INFORMATION AVAILABILITY
• Verify related service repair information availability.
• Is any related repair information available?
|
Yes
|
Perform repair or diagnosis according to the available repair information.
• If the vehicle is not repaired, go to the next step.
|
|
No
|
Go to the next step.
|
|
2
|
VERIFY CURRENT SIGNAL STATUS: IS CONCERN INTERMITTENT OR CONSTANT?
• Start the engine.
• Is the same DTC present?
|
Yes
|
Go to the next step.
|
|
No
|
Intermittent concern exists.
Perform the “INTERMITTENT CONCERN TROUBLESHOOTING”.
|
|
3
|
INSPECT CKP SENSOR
• Inspect the CKP sensor.
• Is it normal?
|
Yes
|
Check for poor connection (damage/pulled-out terminals, corrosion, etc.), bent terminals of the CKP sensor connector or plate.
• Repair if necessary, then go to Step 10.
|
|
No
|
Replace the CKP sensor, then go to Step 10.
|
|
4
|
INSPECT PCM CONNECTOR FOR POOR CONNECTION
• Turn the engine switch to the off position.
• Disconnect the PCM connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there a malfunction?
|
Yes
|
Repair or replace the terminal, then go to Step 10.
|
|
No
|
Go to the next step.
|
|
5
|
INSPECT CKP SENSOR TERMINAL
• Turn the engine switch to the off position.
• Disconnect the CKP sensor connector.
• Check for a bent terminal of CKP sensor terminals A, B and C (part-side).
• Is there a malfunction?
|
Yes
|
Repair or replace the terminal, then go to Step 10.
|
|
No
|
Inspect for an open circuit in the wiring harness between CKP sensor terminal A (wiring harness-side) and main relay terminal D (wiring harness-side).
Repair or the replace wiring harness, then go to Step 10.
|
|
6
|
CHECK POWER SUPPLY CIRCUIT FOR OPEN CIRCUIT
• Turn the engine switch to the ON position (Engine off).
• Check the voltage at CKP sensor terminal A (wiring harness-side).
• Is the voltage B+?
|
Yes
|
Go to the next step.
|
|
No
|
Inspect for an open circuit in the wiring harness between CKP sensor terminal A (wiring harness-side) and main relay terminal D (wiring harness-side).
Repair or replace wiring harness, then go to Step 10.
|
|
7
|
INSPECT CKP SENSOR CIRCUIT FOR OPEN CURCUIT
• Check for continuity between CKP sensor terminal B (wiring harness-side) and PCM connector terminal 1H (wiring harness-side).
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the suspected wiring harness, then go to Step 10.
|
|
8
|
INSPECT CKP SENSOR CIRCUIT FOR SHORT TO GROUND
• Check for continuity between CKP sensor terminal B (wiring harness-side) and body ground.
• Is there continuity?
|
Yes
|
Repair or replace the suspected wiring harness, then go to Step 10.
|
|
No
|
Go to the next step.
|
|
9
|
INSPECT CKP SENSOR GROUND CIRCUIT FOR OPEN CIRCUIT
• Check for continuity between CKP sensor terminal C (wiring harness-side) and PCM connector terminal 1B (wiring harness-side).
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the suspected wiring harness, then go to Step 10.
|
|
10
|
VERIFY TROUBLESHOOTING OF DTC P0335 COMPLETED
• Make sure to reconnect all disconnected connectors.
• Turn the engine switch to the ON position (Engine off).
• Clear the DTCs from the PCM memory using the M-MDS.
• Start the engine.
• Is the same DTC present?
|
Yes
|
Replace PCM, then go to the next step.
|
|
No
|
Go to the next step.
|
|
11
|
VERIFY AFTER REPAIR PROCEDURE
• Perform “AFTER REPAIR PROCEDURE”.
• Is there any DTC present?
|
Yes
|
Go to the applicable DTC inspection.
|
|
No
|
Troubleshooting completed.
|
