ON-BOARD DIAGNOSTIC WIRING DIAGRAM [WL-C, WE-C (Australian, European (L.H.D. U.K.) specs.)]

id0102c4142400

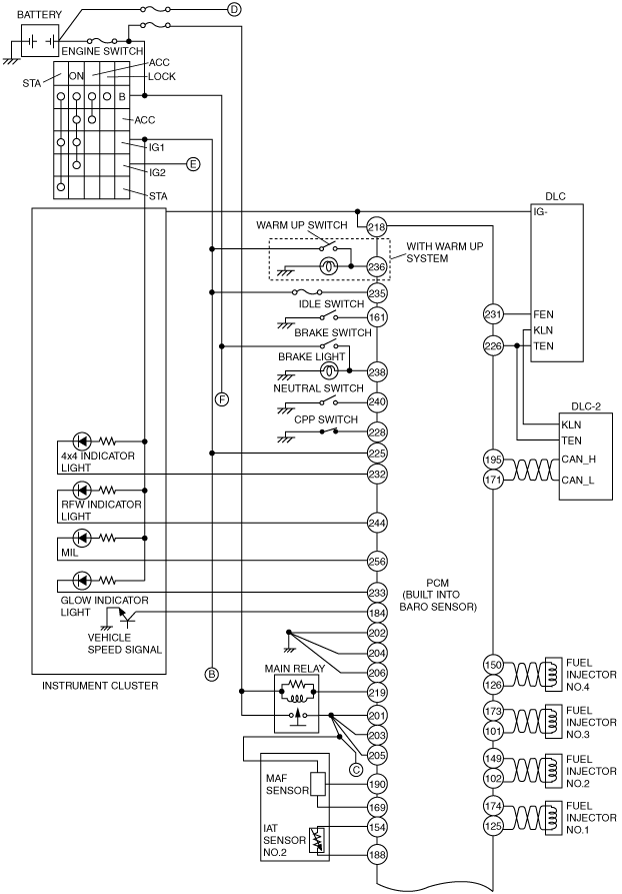

With Immobilizer System

absggn00000181

absggn00000462

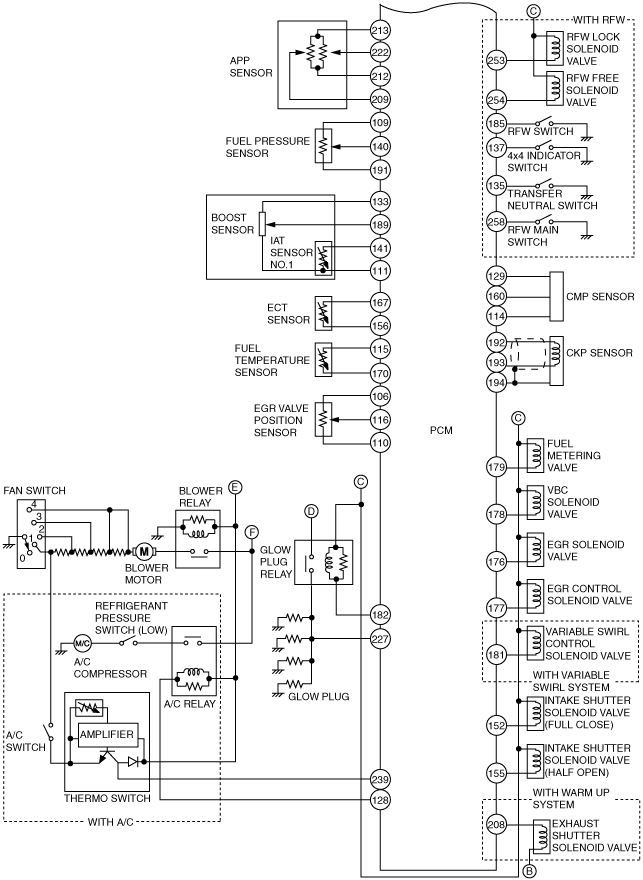

Without Immobilizer System

absggn00000183

absggn00000462
