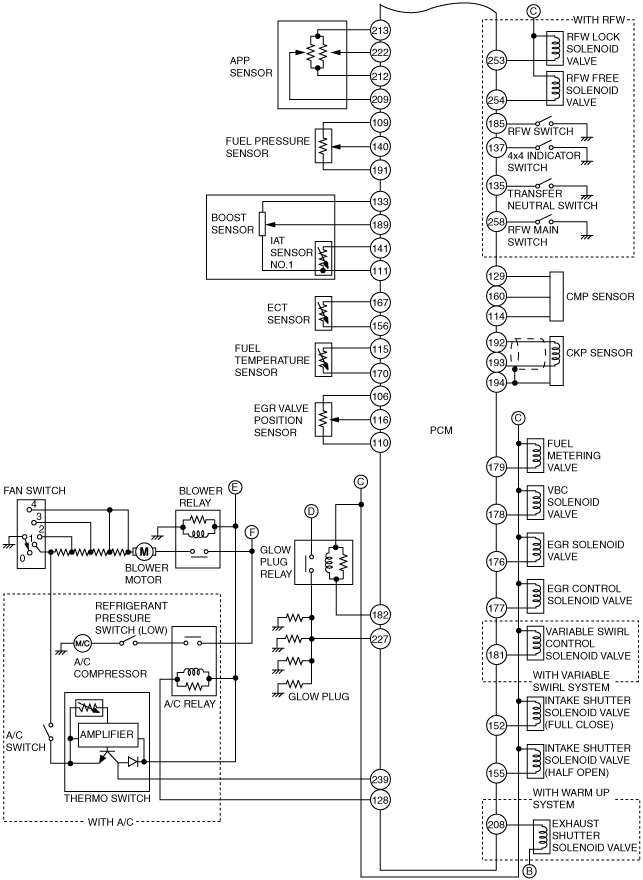

ON-BOARD DIAGNOSTIC WIRING DIAGRAM [WL-C, WE-C (Australian, European (L.H.D. U.K.) specs.)]

id0102c4800100

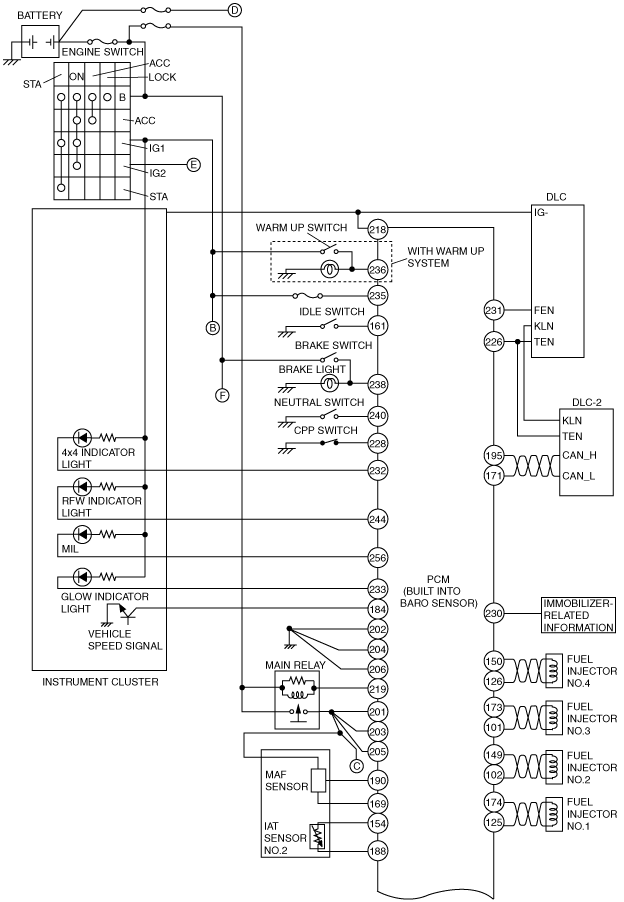

With Immobilizer System

absggw00000563

absggw00002148

Without Immobilizer System

absggw00000565

absggw00002148
