Melting of main or other fuses
[TROUBLESHOOTING HINTS]
Inspect condition of fuse.
NO.1 MELTING OF MAIN OR OTHER FUSES [WLT-1, WLT-2]
id010396800700
|
1 |
Melting of main or other fuses |
|||
|---|---|---|---|---|
|
[TROUBLESHOOTING HINTS]

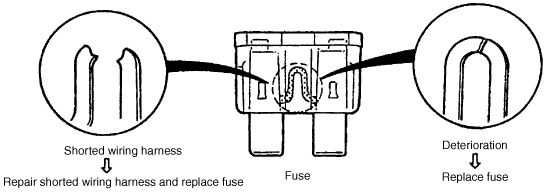

Inspect condition of fuse.
|
||||
|
||||
|
Damaged fuse |
Related wiring harness |
|---|---|
|
MAIN
|
Main fuse
• Engine switch
• Generator
• PCM
Blower relay
• Blower fan motor
A/C relay
• Refrigerant pressure switch
|
|
HEAD
|
HEAD fuse
• Generator
|
|
GLOW
|
Glow plug relay
• Glow plugs
|
|
ENGINE
|
Engine fuse
• PCM
• FICD solenoid valve No.1
• FICD solenoid valve No.2
• FCV
|
